Home >> Buick >> 1982 >> Skyhawk L4-112 1.8L VIN G 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Idle/Throttle Speed Control Unit >> Testing and Inspection

Idle/Throttle Speed Control Unit: Testing and Inspection

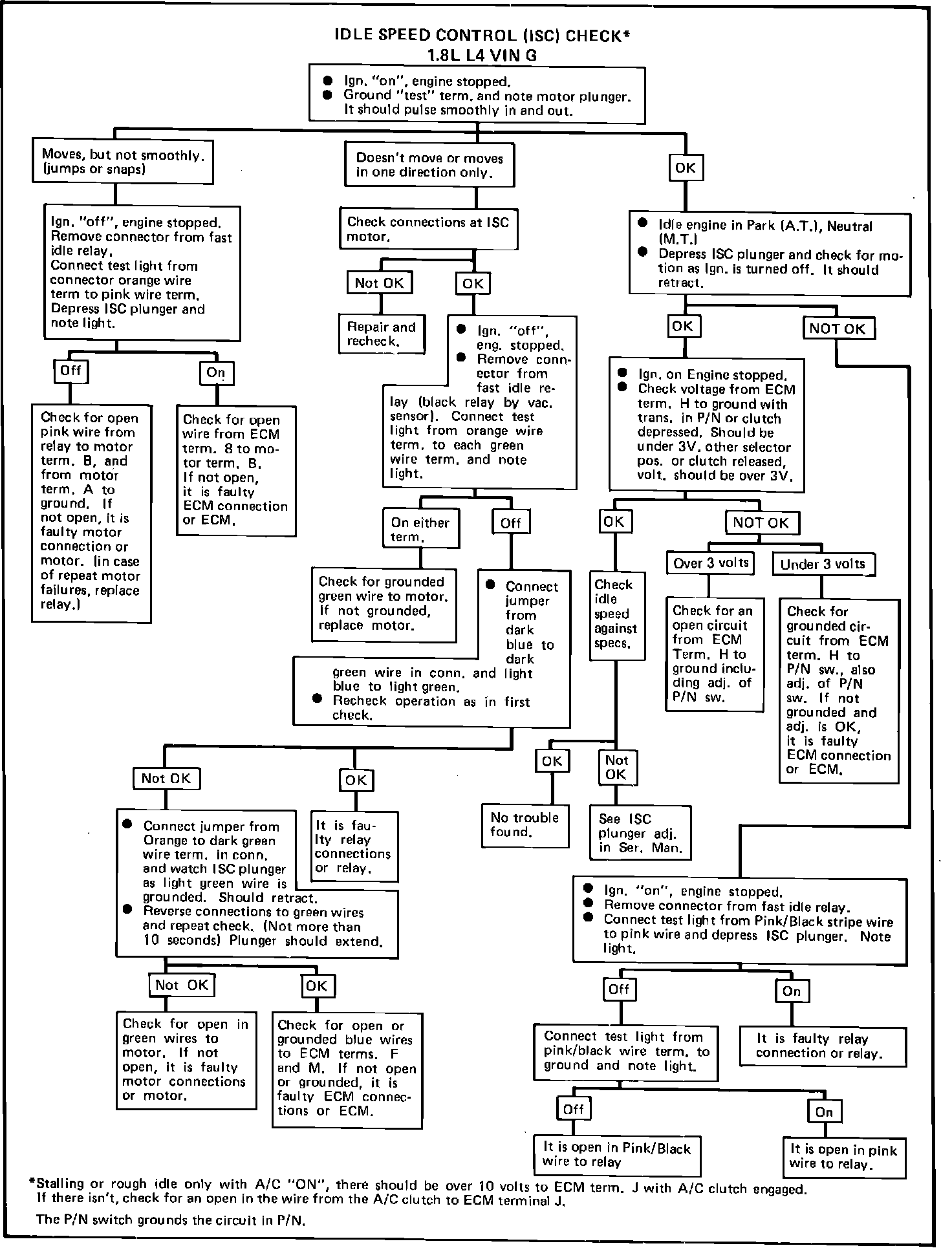

Fig. 031 CHART C-2C IDLE SPEED CONTROL (ISC) CHECK:
