Home >> Buick >> 1982 >> Century L4-151 2.5L VIN R TBI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

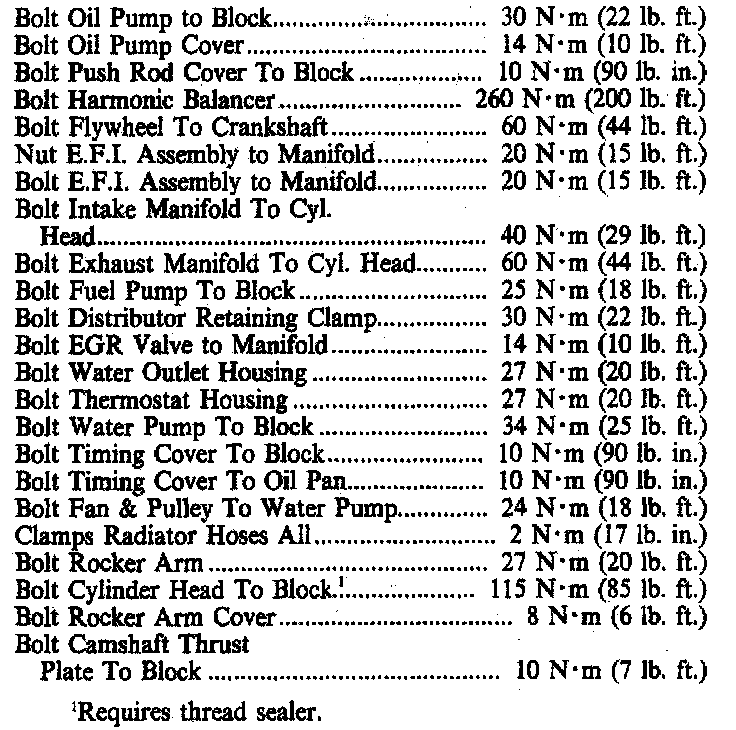

Torque Specification:

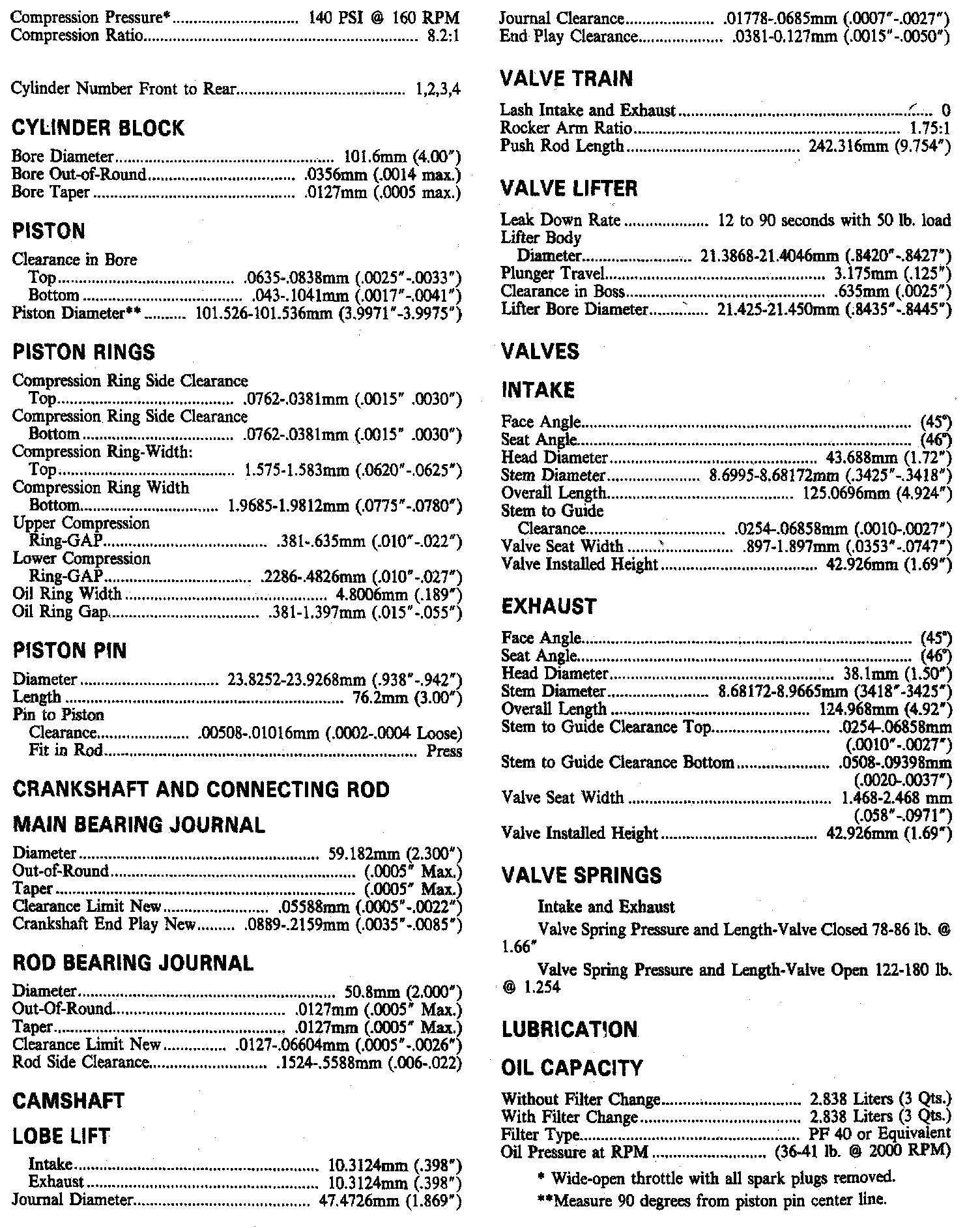

Engine Specifications:

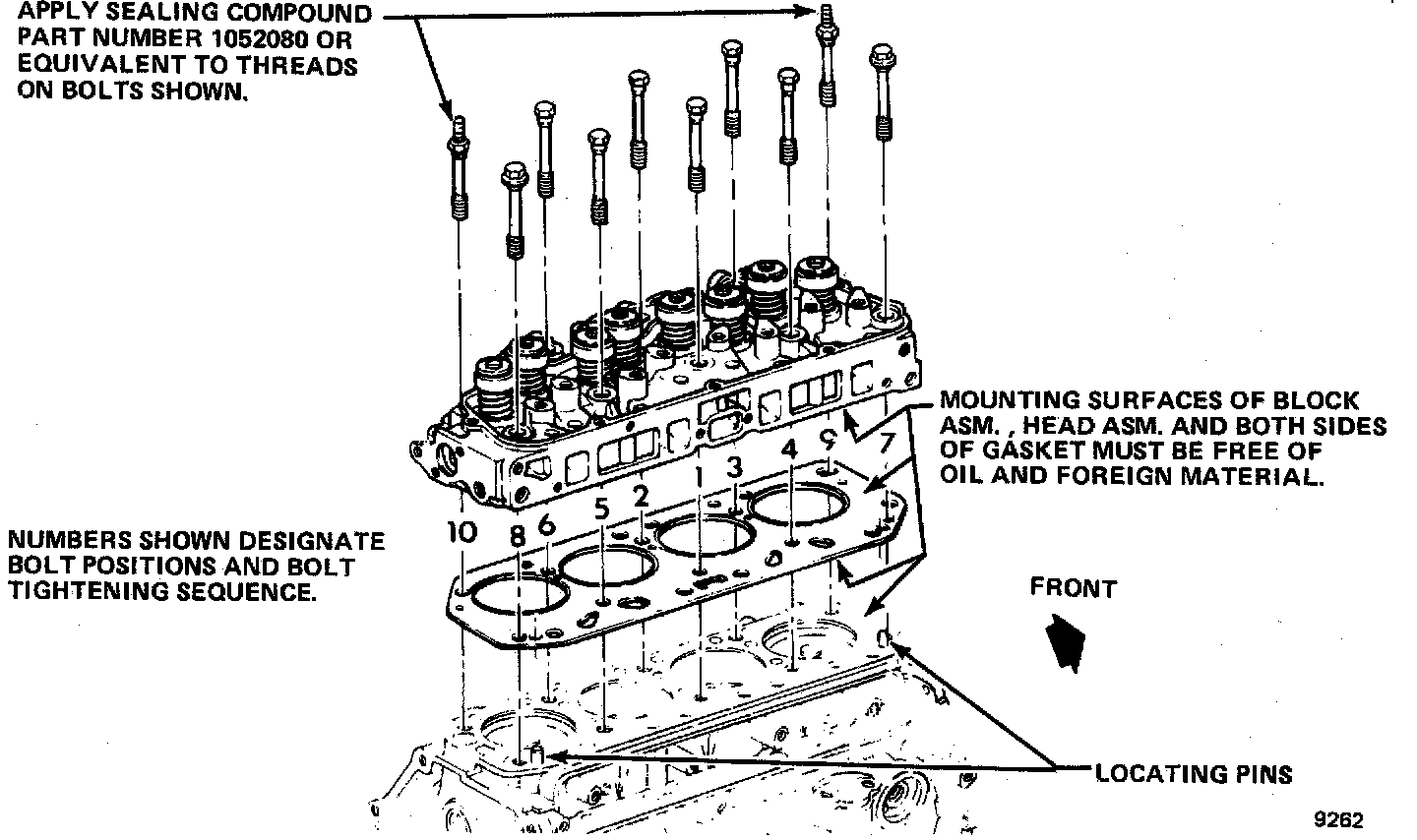

Cylinder Head Torque Sequence:

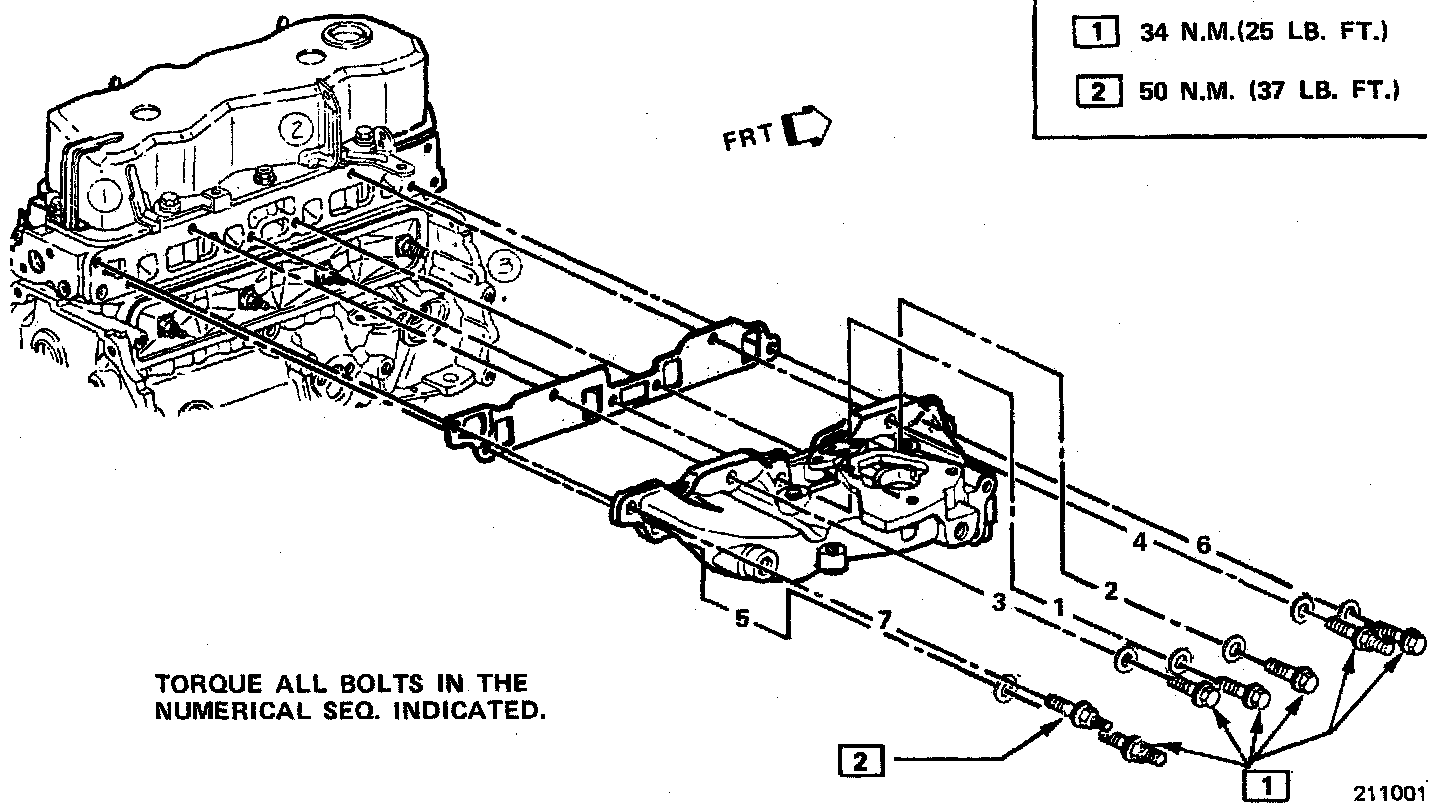

Intake Manifold Bolt Torque Sequence:
