Engine Control Module (ECM) C3

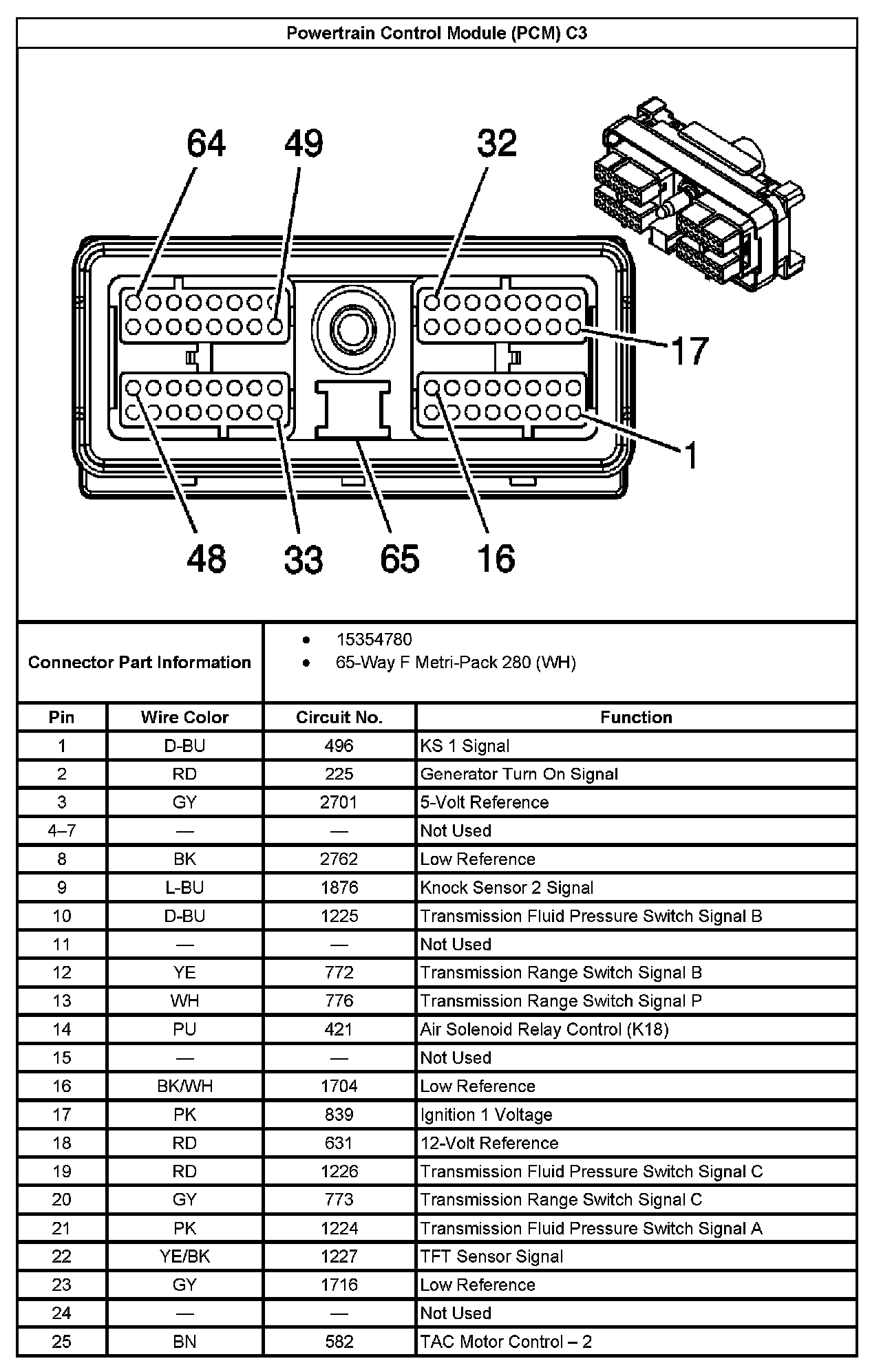

Powertrain Control Module (PCM) C3 Part 1:

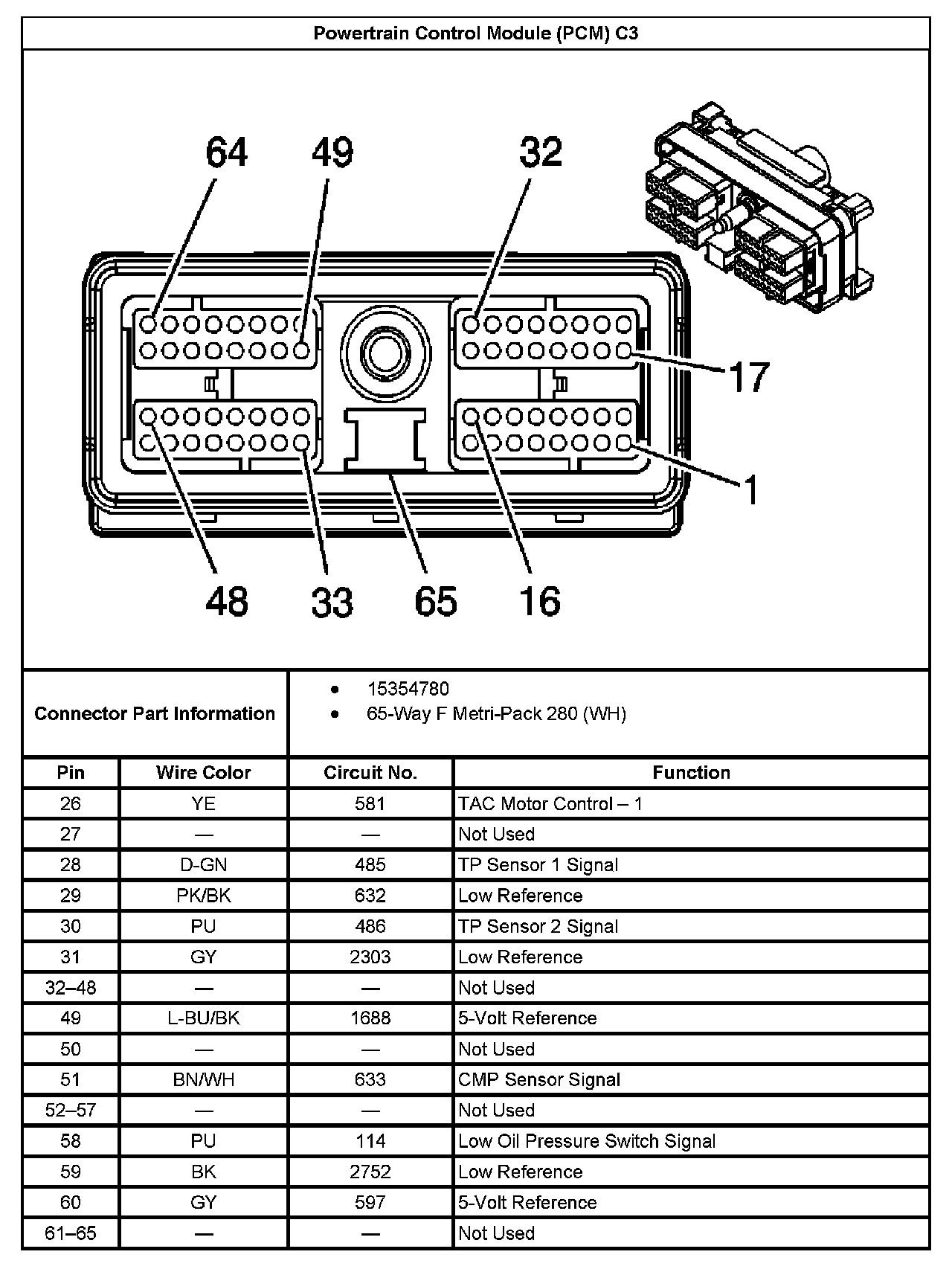

Powertrain Control Module (PCM) C3 Part 2:
