23 12 089 Replacing Radial Shaft Seal For Selector Shaft (GS6-53BZ/DZ)

23 12 089 - Replacing radial shaft seal for selector shaft (GS6-53BZ/DZ)





Special tools required:
- 23 0 210 23 0 210 Extractor
- 23 0 220 23 0 220 Impact Bush






Important!
After completion of work, check transmission oil level 00 11 ... Draining/Topping Up Gear Oil in Manual Transmission.

Use only approved transmission oil.

Failure to comply with this instruction will result in serious damage to the transmission.





Necessary preliminary tasks:
- Shift transmission into 2nd gear
- Unflange propeller shaft from transmission.
Tasks are described in Removing propeller shaft 26 11 000 Removing and Installing Propeller Shaft (Inserted) Completely.





Lever retaining ring (1) out of groove with a small screwdriver.

Slide locking ring (1) towards rear.

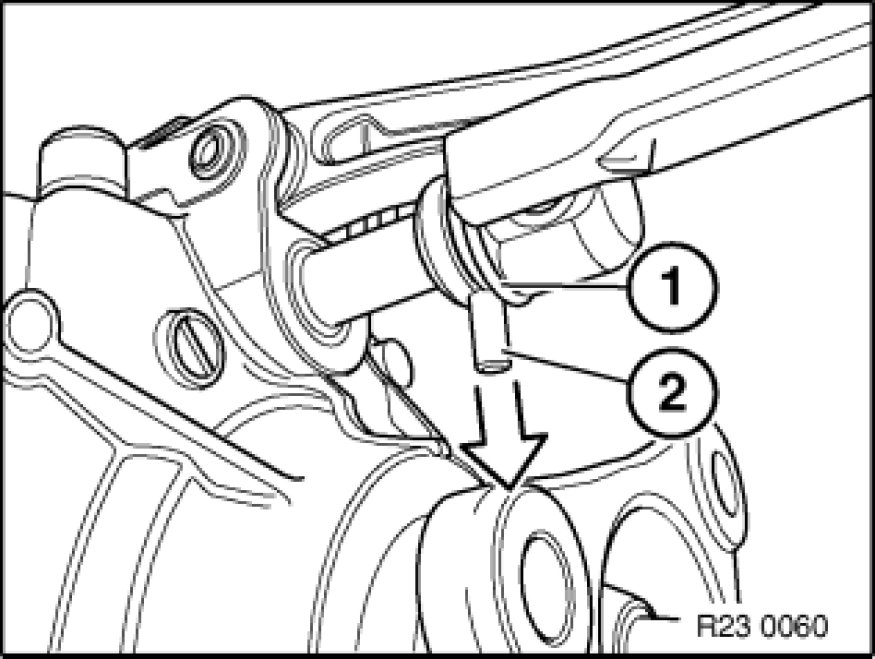

Drive out cylinder pin (2).

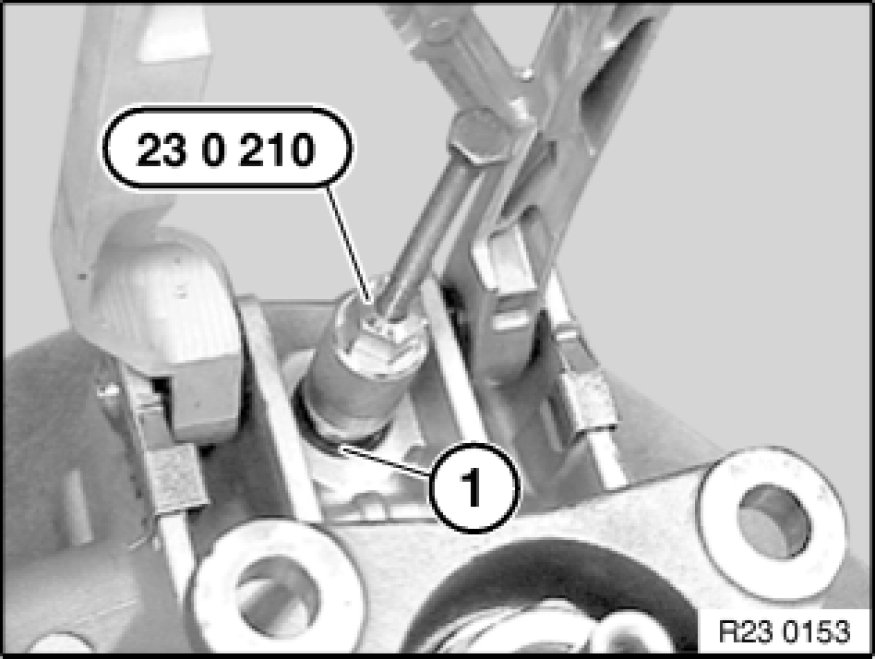

Screw in special tool 23 0 210 23 0 210 Extractor until it is firmly connected with radial seal (1).

Pull out radial seal with special tool 23 0 210 23 0 210 Extractor.





Coat sealing lips of radial seal and selector shaft with transmission oil.

Drive in radial seal with special tool 23 0 220 23 0 220 Impact Bush.
