51 47 440 Removing and Installing/Replacing Rear Carpet on Seat Pan

51 47 440 - Removing and installing/replacing rear carpet on seat pan





Necessary preliminary tasks:
- Remove left/right front seat Removing and Installing Left or Right Front Seat (Normal/Electric)
- Remove storage compartment 51 16 200 Removing and Installing Storage Compartment
- Remove handbrake lever 34 41 000 Removing and Installing/Replacing Handbrake Lever
- Remove rear side trim Removing and Installing/Replacing Rear Left or Right Lower Side Trim Section left/right
- Remove inside entrance cover strip 51 47 000 Removing and Installing/Replacing Front (Inside) Left or Right Entrance Cover Strip
Version with central bass speaker:
- Remove central bass speaker trim 65 12 050 Removing and Installing/Replacing Left or Right Central Bass Speaker (Under Front Seat) on left/right





E92 only:

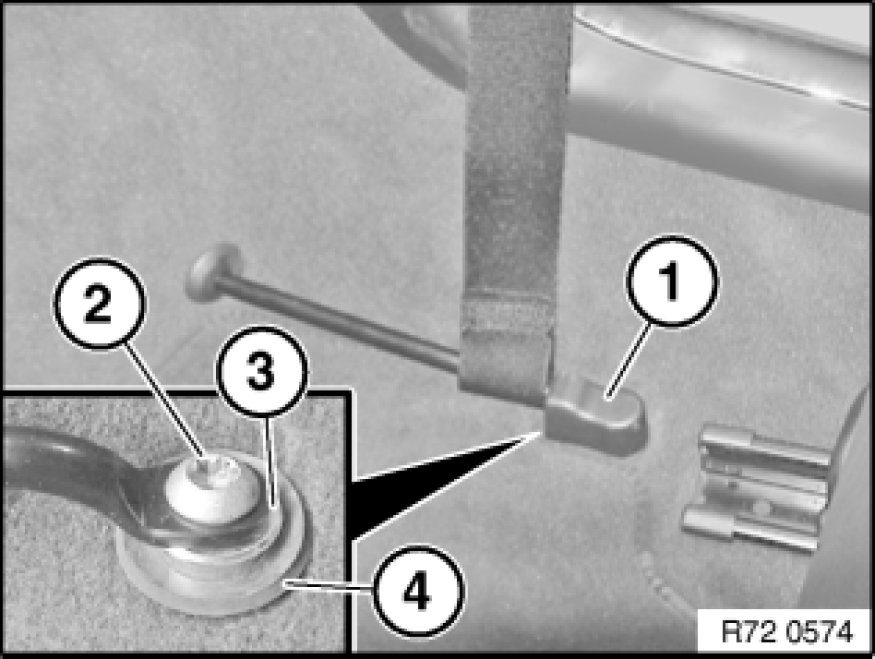

Lever out cap (1).
Release bolt (2).
Tightening torque 72 11 5AZ Specifications.
Feed out belt and slide bar.

Installation:
Make sure slide bar and grommet are correctly positioned.
Check that spacer bushing (3) and rubber ring (4) are in correct position.

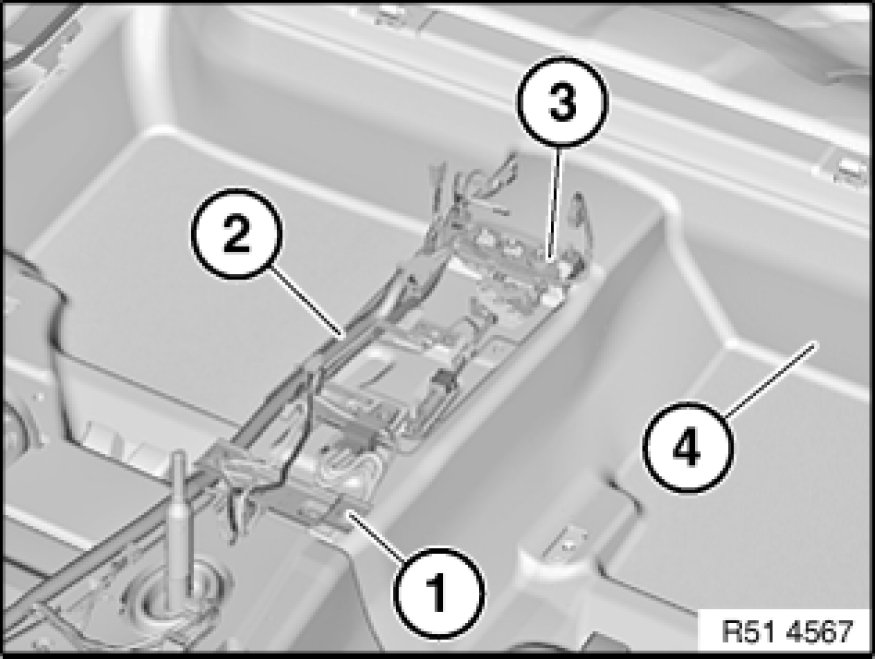

Remove holder (1).
Pull back cable (2) with cable holder (3).
Feed out carpet (4).

Installation:
Make sure openings for air duct and attachment points are correctly positioned.
