Removing and Installing/Replacing Servodrive in Storage Compartment

67 11 610 - Removing and installing/replacing servodrive in storage compartment





Necessary preliminary tasks:
- Remove storage compartment 51 16 200 Removing and Installing Storage Compartment





Release screws (1).
Lever out air duct (3) at catch (2) and feed out of storage compartment.





First feed air duct (1) to right out of guides (2) and duct (3), then remove to left out of storage compartment.

Installation:
Seal (4) must not be damaged.

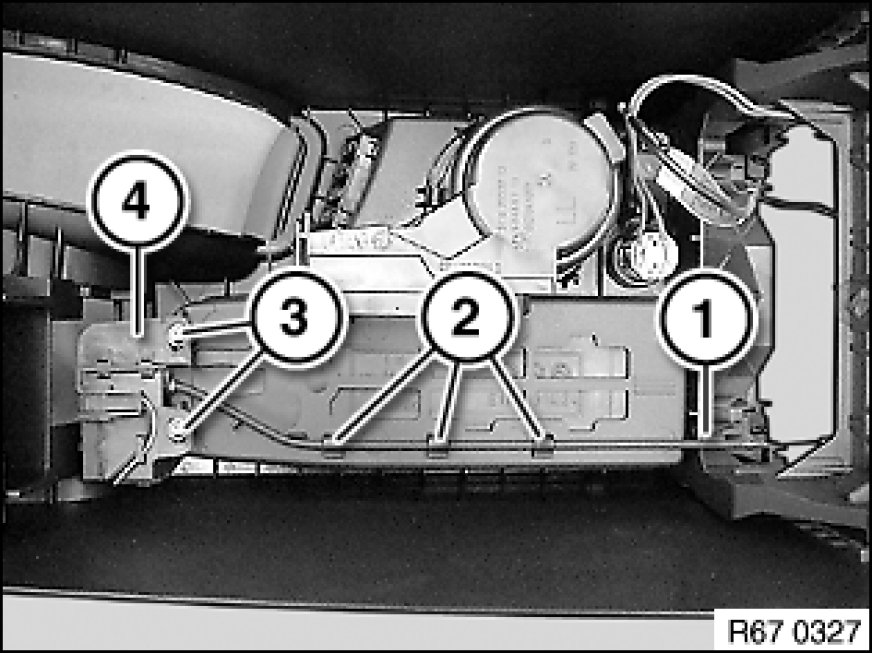

Unclip Bowden cable (1) from holder (2).
Release screws (3).
Remove servodrive (4).
