61 13 ... Removing and Installing/Replacing Fibre-Optic Cable Connector

61 13 ... - Removing and installing/replacing fibre-optic cable connector





Important!
Comply with notes and instructions on handling optical waveguides 61 00 ... Notes on Handling Optical Fibers.





Necessary preliminary tasks:
- Remove amplifier 65 12 072 Removing and Installing (Replacing) Amplifier (Top HiFi System)

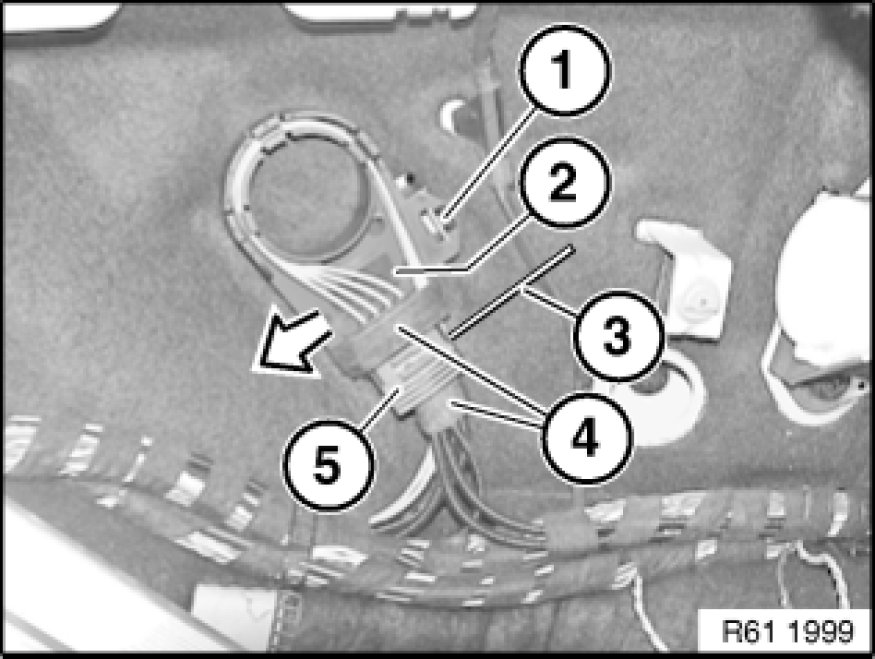

Unlock catch (1) and remove deflection roller (2) from holder.
Remove adhesive tape (4).
Unlock catch on fibre-optic cable connector (5) with a suitable tool (3).
Remove fibre-optic cable connector (5) in direction of arrow from deflection roller (2).

Installation Note:
Secure fibre-optic cable connector (5) with adhesive tape to deflection roller (2).

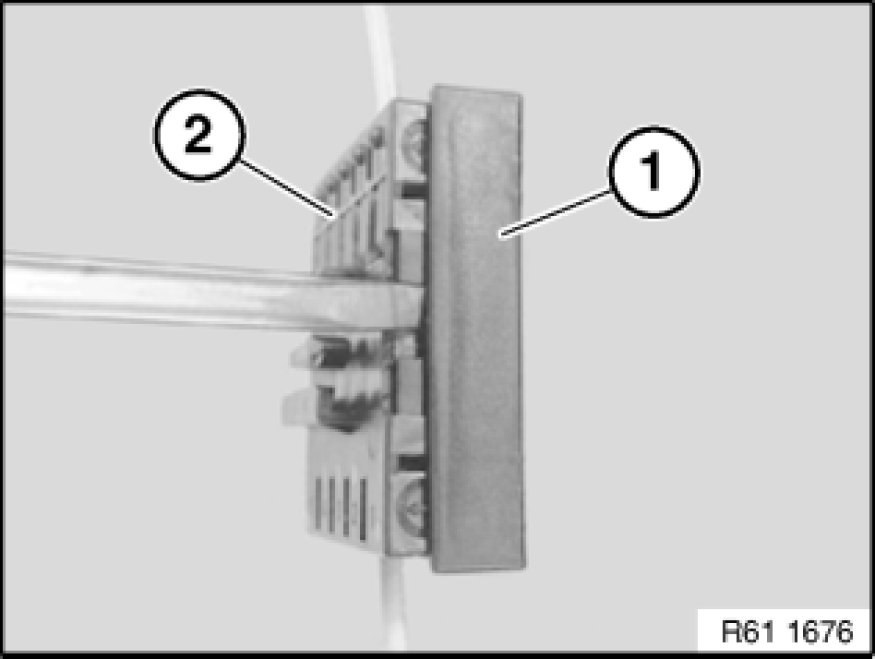

Carefully raise cover cap (1) with a suitable tool and remove from fibre-optic cable connector (2).

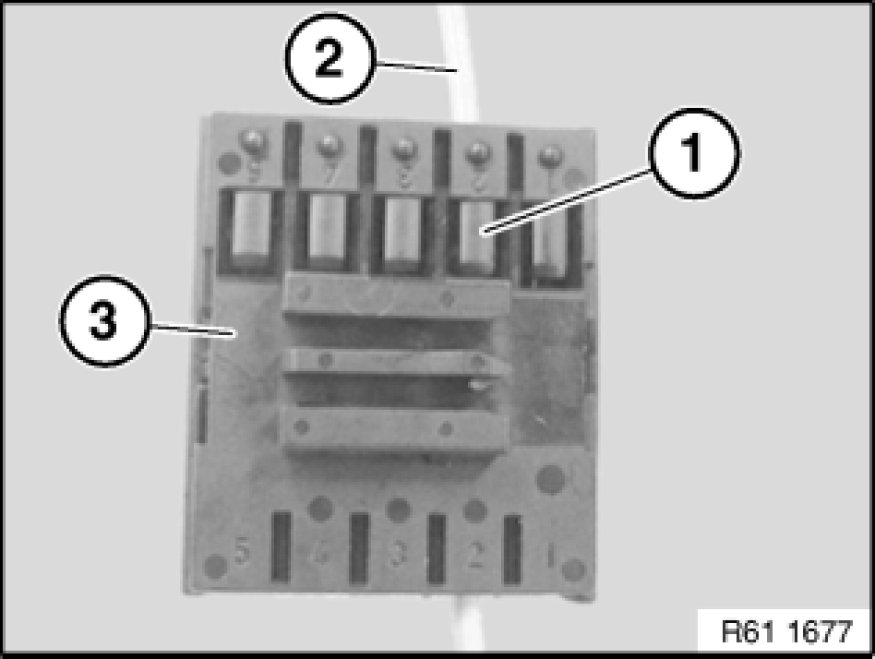

Carefully raise lock (1) and pull fibre-optic cable (2) out of fibre-optic cable connector (3).

Installation Note:
Make sure fibre-optic cable (2) is correctly seated and engaged in fibre-optic cable connector (3).
