Removing and Installing/Replacing Radial Compressor Deflection Pulley (BMW ALPINA B7)
11 28 ... - Removing and installing/replacing radial compressor deflection pulley (BMW ALPINA B7)
Necessary preliminary tasks:
- Remove support block Removing and Installing/Replacing Support Block for Radial Compressor (BMW ALPINE B7)

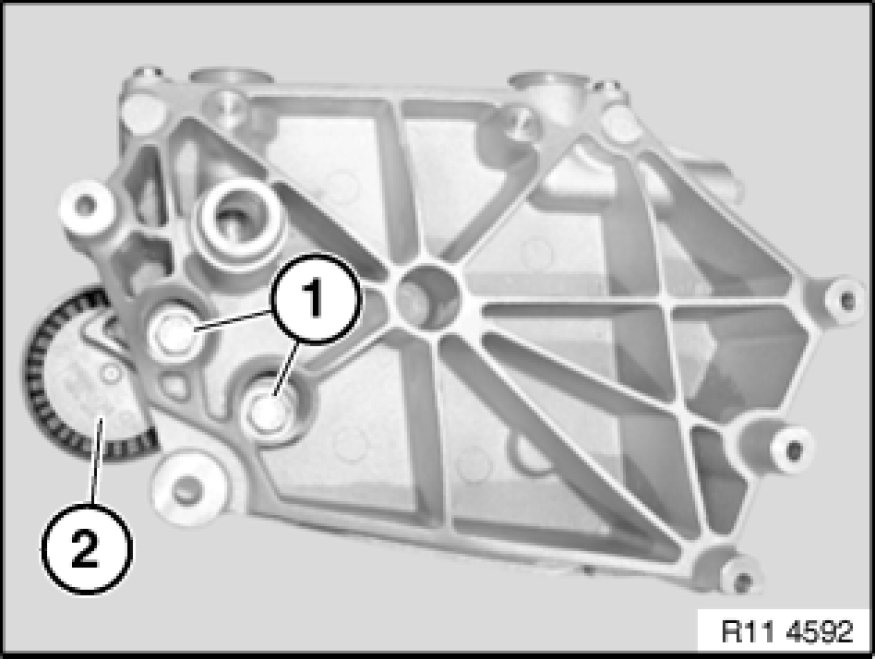

Release bolts (1) and remove deflection pulley (2).
Installation:
Tightening torque: 21 Nm.
