Headlamp Washer Spray Nozzle: Service and Repair

61 67 045 - Removing and installing/replacing spray nozzles for left or right headlight cleaning system





Necessary preliminary tasks:
- Remove front bumper trim 51 11 156 Removing and Installing Front Bumper Trim.





Press lock (2) and detach hose connection (1).
Press catch together in direction of arrow and remove spray nozzle for headlight cleaning system (3) towards bottom.

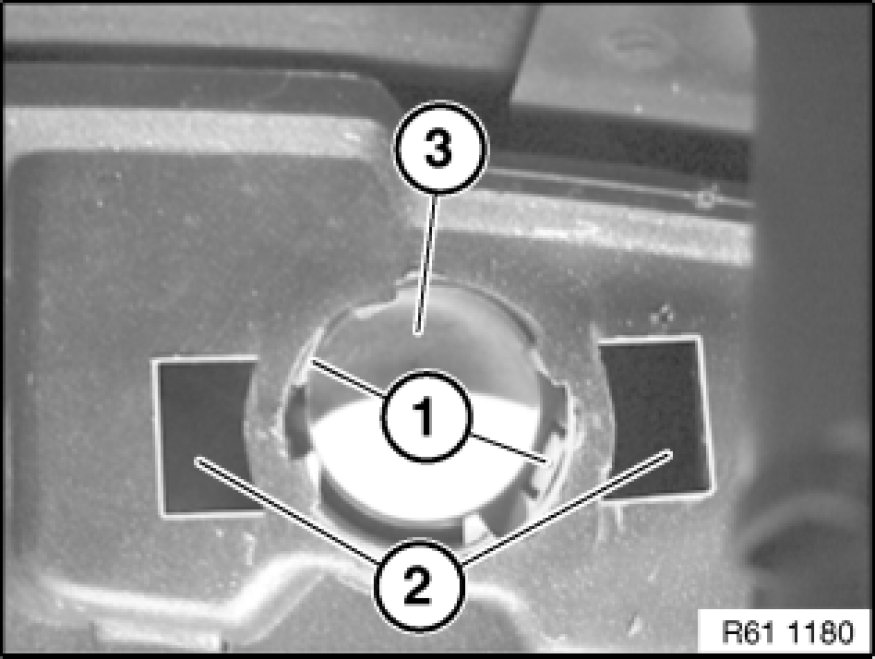

Unlock catches (1) of trim (3) through punched holes (2).
Remove trim (3) from above.





Installation:
Following parts of spray nozzle (1) must not be damaged or missing:
2 - Sealing ring
3 - Catch
Catches (3) of trim (4) must not be damaged or missing.
