51 37 242 Replacing Outer Window Cavity Cover Strip For Rear Left or Right Side Window

51 37 265 - Removing and installing/replacing window cavity cover strip for door window, rear left or right





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge





Necessary preliminary tasks:
- Remove side trim upper section Removing and Installing/Replacing Rear Left or Right Upper Side Trim Section

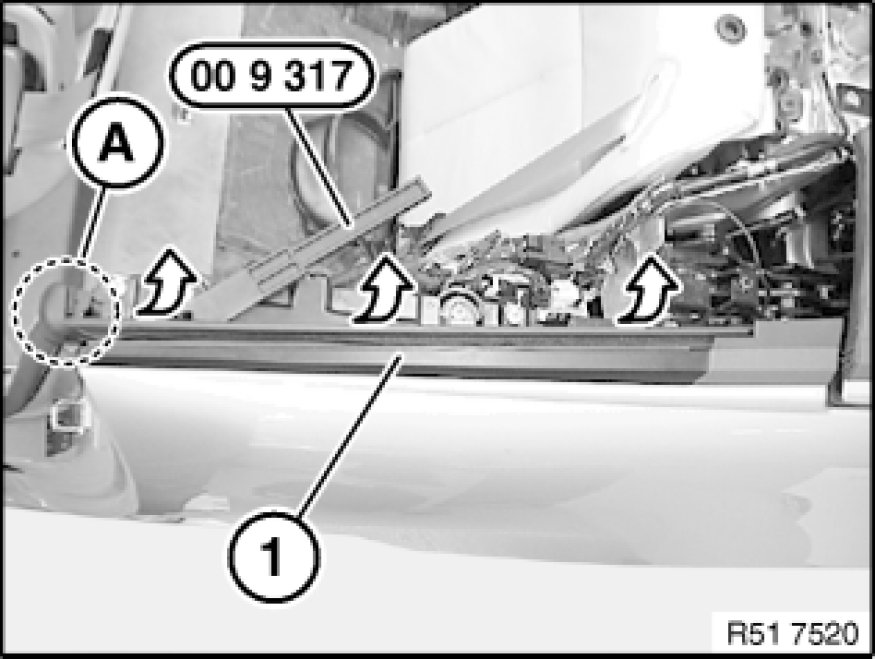

Lever out inner window cavity cover strip (1) with special tool 00 9 317 00 9 317 Trim Panel Wedge in direction of arrow

Installation:
Make sure window cavity cover strip (1) is correctly seated in area (A).





Installation:

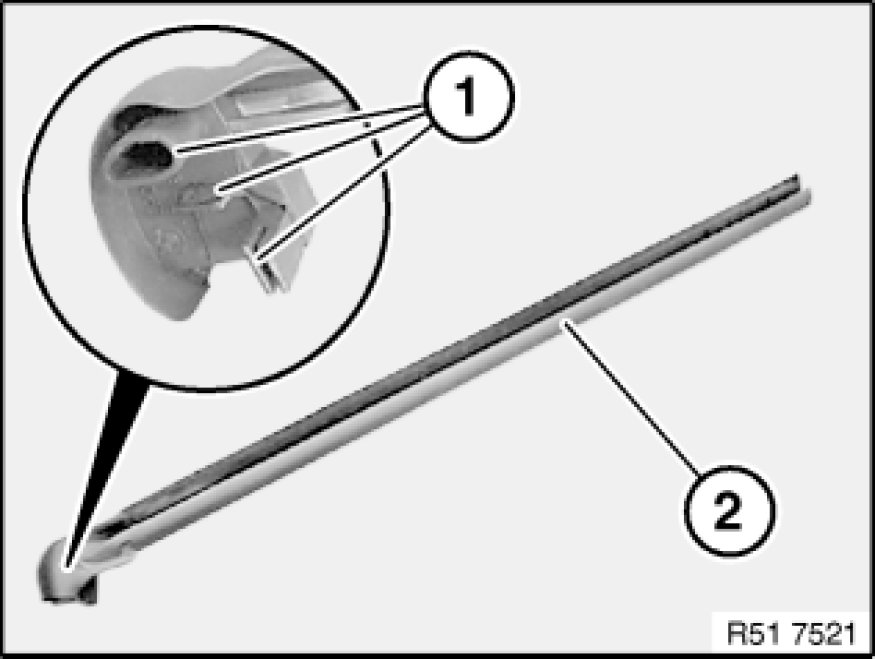

Guides (1) on window cavity cover strip (2) must not be damaged.
