Removing and Installing/Replacing Drive For Rear Window

67 61 541 - Removing and installing/replacing drive for rear window





Necessary preliminary tasks:
- Remove rear window Removing and Installing/Replacing Rear Window

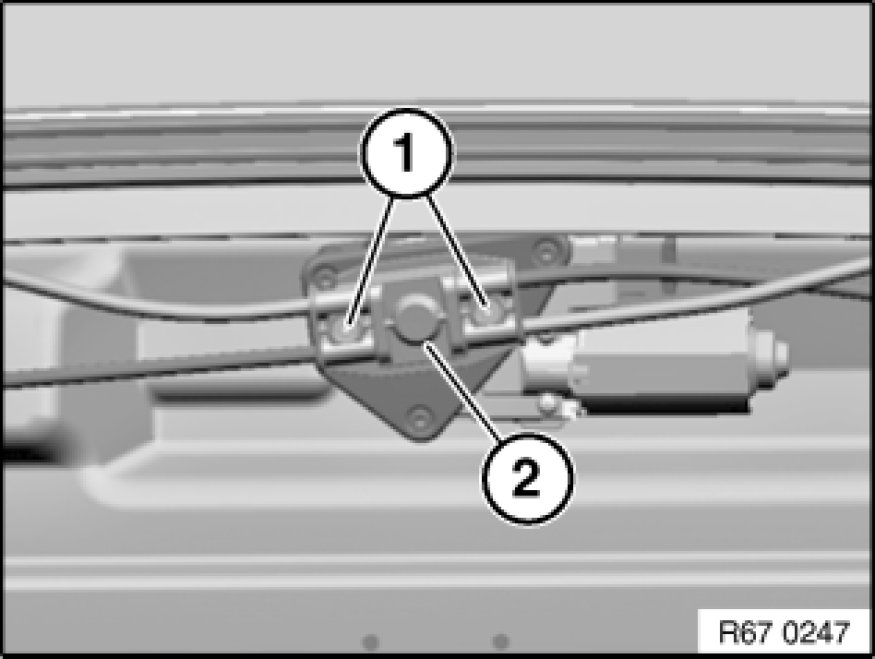

Release screws (1) and remove cap (2).





Note:

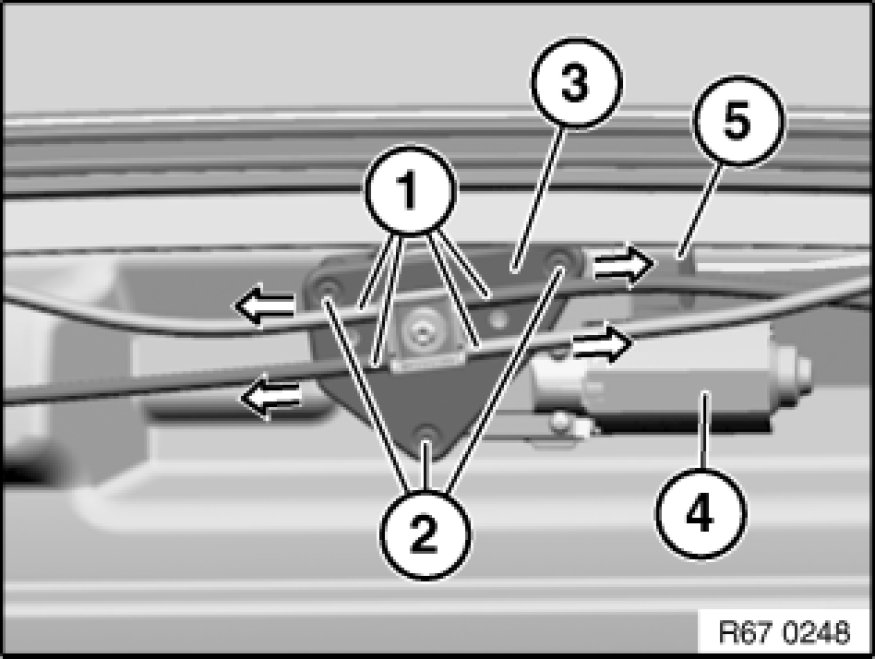

If necessary, mark drive shafts (1).

Detach drive shafts (1) in each case in direction of arrow.

Installation:
Do not mix up drive shafts (1), pay attention to relevant markings.

Unfasten plug connection (5) and disconnect.

Release screws (2), tightening torque 54 34 6AZ 54 34 Motor-Driven Convertible Top (Electrical Components).
Remove plate (3) together with drive for rear window (4).
