Removing and Installing/Replacing Rear Stabilizer

33 55 000 - Removing and installing / replacing rear stabilizer





Necessary preliminary tasks:
- Remove stabilizer link on both sides from stabilizer Replacing Stabilizer Links for Stabilizer





If necessary, remove vibration damper from right retaining bracket of stabilizer.
Tightening torque 33 55 6AZ Rear Axle - Stabilizer Bar.

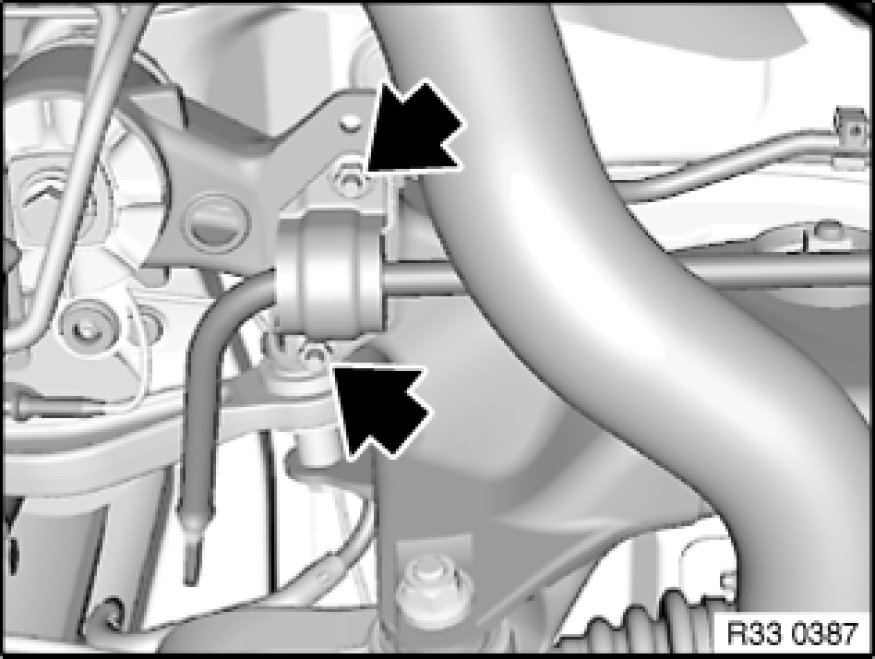

Release nuts at both ends.
Remove stabilizer sideways.

Installation:
Check rubber mount on both sides Replacing Both Rubber Mounts for Stabilizer Mounting, replace if necessary.
Replace self-locking nuts.
Tightening torque 33 55 3AZ Rear Axle - Stabilizer Bar.





Replacement:
Remove rubber mount on both sides from stabilizer Replacing Both Rubber Mounts for Stabilizer Mounting.
