Traction Control Switch: Service and Repair




61 31 109 - Removing and installing/replacing Dynamic Stability Control switch (M5/M6)





Necessary preliminary tasks:
- Remove finisher for preselector lever 51 16 214 - Removing and installing/replacing trim for preselector lever (M5, M6)

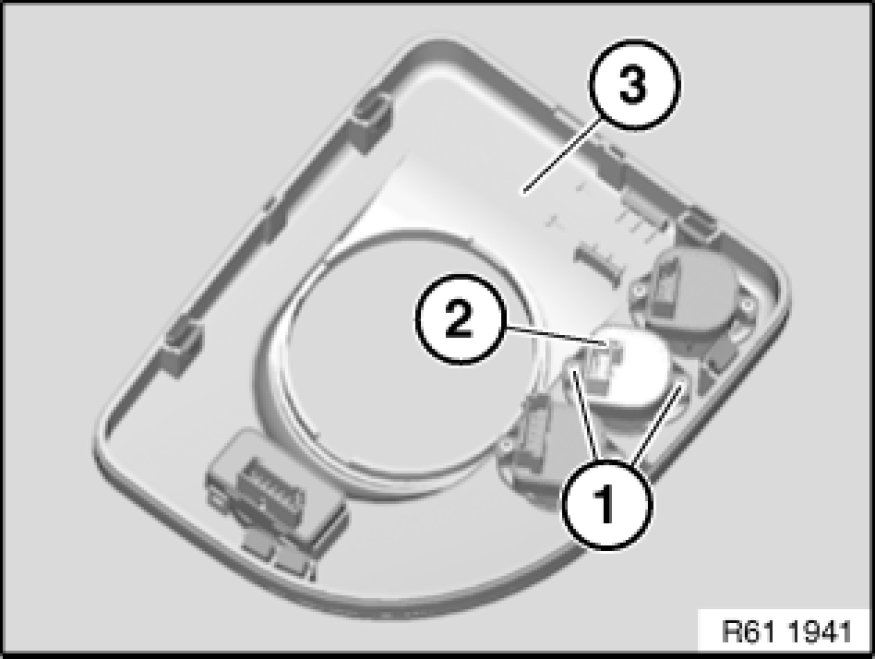

Release screws (1).
Remove switch for Dynamic Stability Control (2) from trim for preselector lever (3).
