Removing and Installing / Sealing or Replacing Connecting Flange (S85)

11 42 095 - Removing and installing / sealing or replacing connecting flange (S85)





Important!
It is essential to adhere to the exact filling capacities specified.
Overfilling the engine with engine oil will result in engine damage.





Recycling:
Catch and dispose of emerging engine oil with suitable equipment.
Note national regulations.





Necessary preliminary tasks:
- Remove fan cowl with electronic fan.
- Remove front underbody protection Removing and Installing/Replacing Front Underbody Protection.
- Remove tensioning device Removing and Installing/Replacing Belt Tensioner for A/C Compressor for A/C compressor.
- Disconnect pressure line Removing and Installing/Replacing Oil Pressure Hose - Feed (feed).
- Remove engine oil sump Service and Repair.
- Remove engine oil pump Service and Repair.

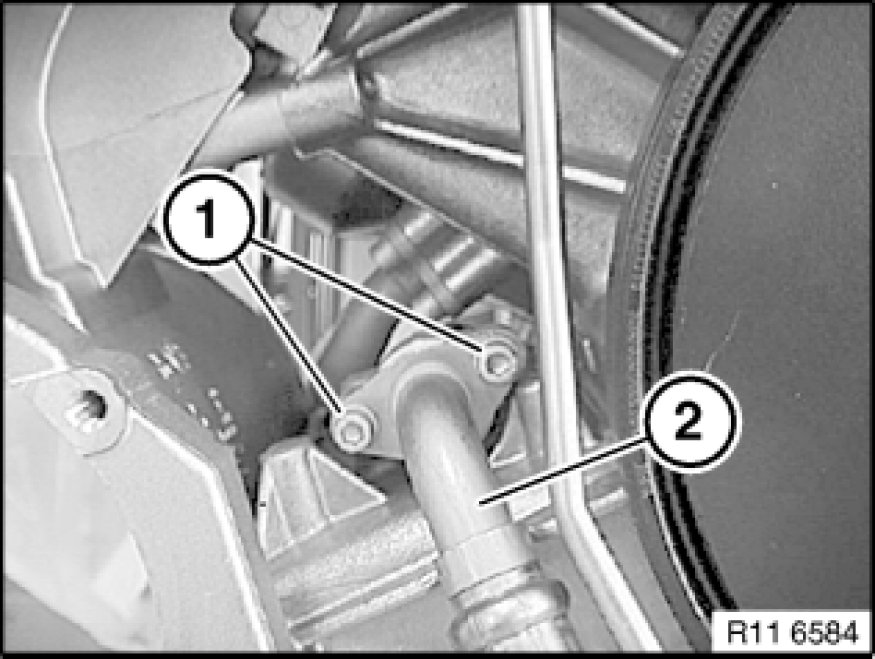

Release screws (1).
Detach pressure line (2).

Installation Note:
Replace O-ring.





Release screws (2).

Installation Note:
Replace seal.





Assemble engine.
Park vehicle on a horizontal surface.
Allow engine at normal operating temperature to run for 3 minutes with increased revs (min. 1000 / max. 1500 rpm).
Read off engine oil level in instrument cluster or on Control Display.
