Convertible Top Frame: Service and Repair

54 34 080 - Removing and installing left or right control element





Necessary preliminary tasks:
- Remove cowl panel trim 54 34 127 Removing and installing/replacing cowl panel trim (convertible top fastener) (convertible top fastener)

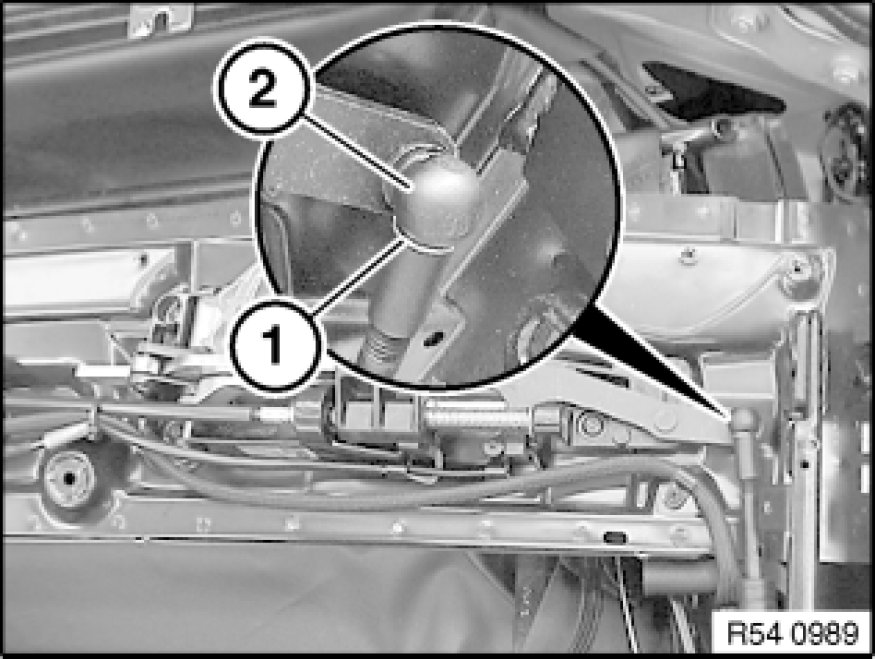

Lever out retaining bar (1) and detach ball socket (2).

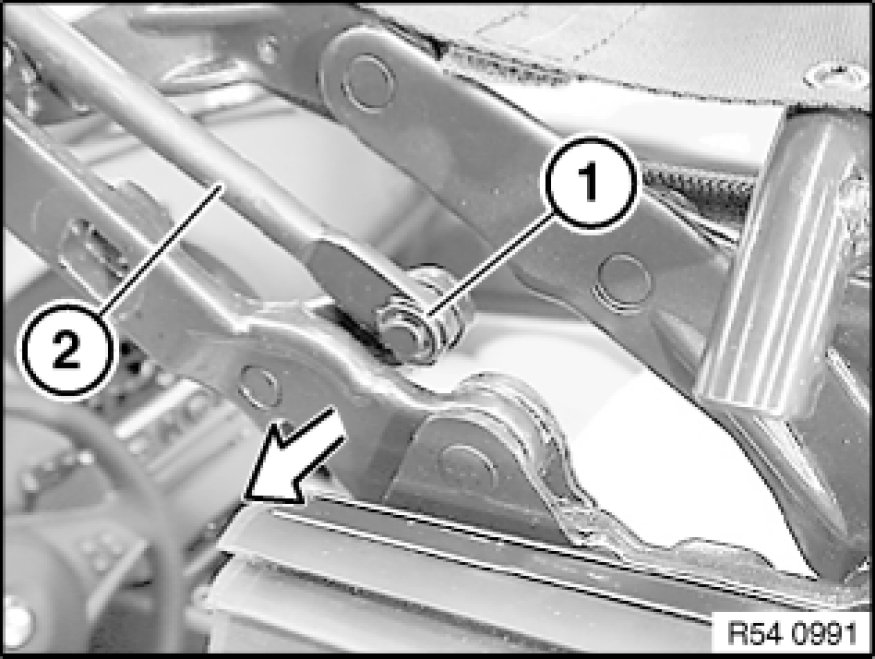

Release retaining ring (1).
Detach control element (2) from pin.

Installation:
If necessary, adjust (tension) control element Adjustments.
