Replacing Rear Left or Right Side Trim Panel

51 43 005 - Replacing rear left or right side trim panel





Necessary preliminary tasks:
- Remove rear side trim panel Removing and Installing Rear Left or Right Side Trim Panel
- Remove speaker
- Remove cover for frame aperture Removing and Installing / Replacing Cover for Frame Aperture on Left or Right

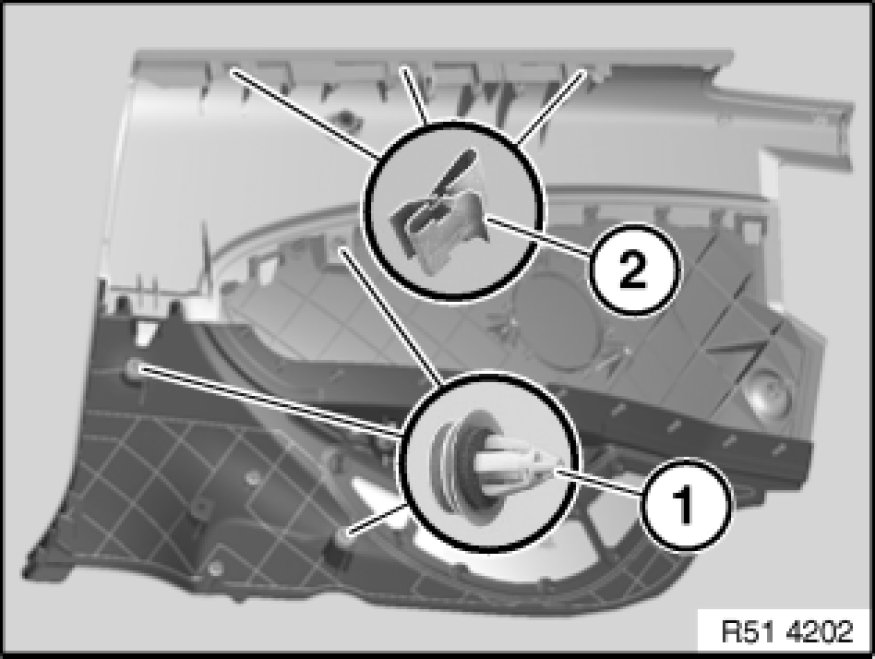

Fit all clips (1) with sealing ring.
If necessary, replace faulty clips (1) and/or retainers (2).
