51 16 201 Replacing Storage Compartment

51 16 201 - Replacing storage compartment





Necessary preliminary tasks:
- Remove storage compartment 51 16 200 Removing and Installing Storage Compartment
- Remove centre armrest carrier 51 16 ... - Removing and installing/replacing centre armrest carrier
- Remove cup holder mounting 51 16 ... - Removing and installing/replacing mounting for cup holder at front
- Remove controller Removing and Installing/Replacing Front Controller
- Remove servodrive for storage compartment Removing and Installing/Replacing Servodrive in Storage Compartment
- Remove button unit Removing and Installing/Replacing Button Unit (For on-Board Monitor)

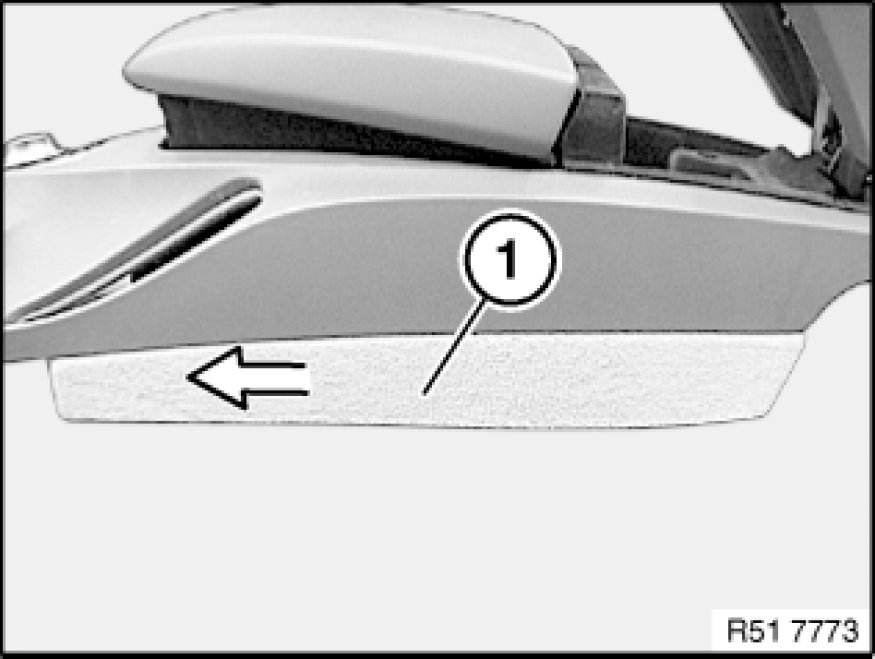

Pull off trim (1) on left/right in direction of arrow.

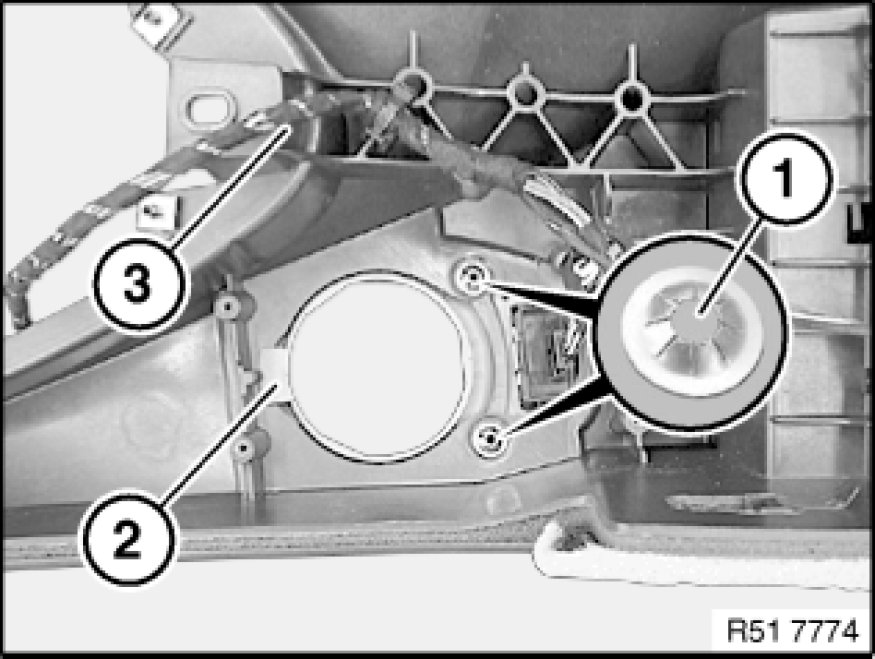

Release retainers (1) and remove trim (2).
Feed cable (3) out of storage compartment.
