51 11 157 - Replacing front bumper trim

51 11 157 - Replacing front bumper trim





Necessary preliminary tasks:
- Remove front bumper trim 51 11 156 Removing and Installing Front Bumper Trim

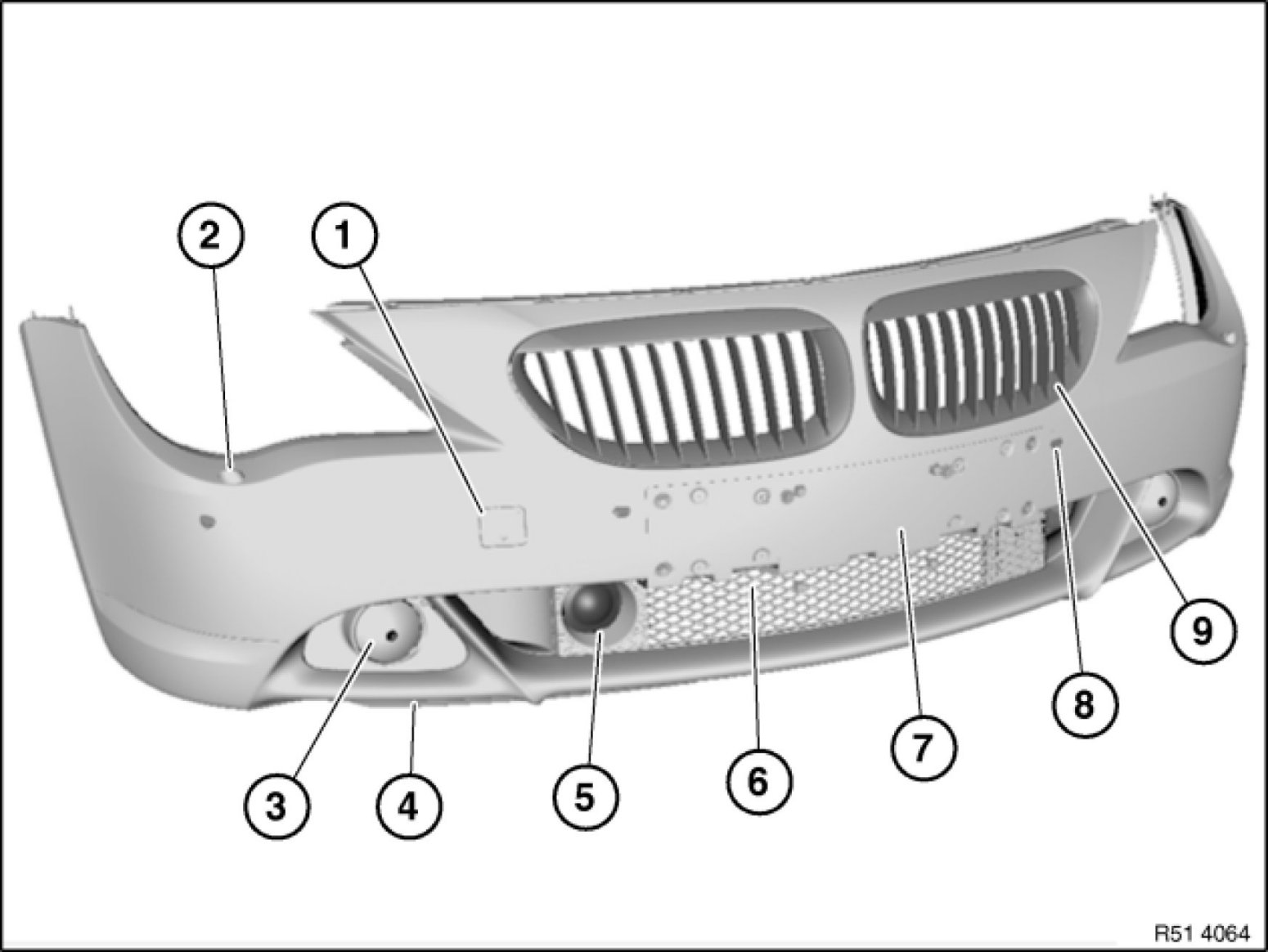

- Remove cover cap (1) for tow lug.
- Remove spray nozzles of headlight washer system (2) Service and Repair
- Remove front fog lamp (3) (not for M6)
- Remove damping lip/spoiler (4) (not for M6)
- If necessary, remove trim for ACC (5) (not for M6)
- Remove trim grille in bumper trim (6) .
- If necessary, remove license plate (7) Service and Repair.
- If necessary, remove baseplate for license plate Service and Repair
- If necessary, remove wiring harness and PDC ultrasonic sensor (8) Removing and Installing/Replacing an Ultrasonic Transducer at Front (Inside) (Park Distance Control).
- Remove middle front radiator grille (9) 51 13 001 Removing and Installing/Replacing Front Radiator Grille, Middle Left or Right.
