Airbag II

WARNING!
Conform with safety precautions!
Incorrect handling can activate airbag and result in injury.


Disconnect battery and cover negative pole or terminal.
Removing airbag unit, refer to [1][2]Procedures

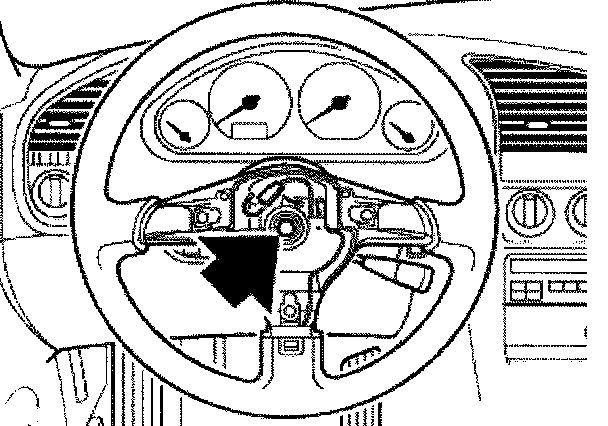

Unscrew screw.

Mark position of steering wheel relative to steering spindle.

Installation:
Tightening Torque
Nut to 80 Nm / Screw 63 Nm



CAUTION!

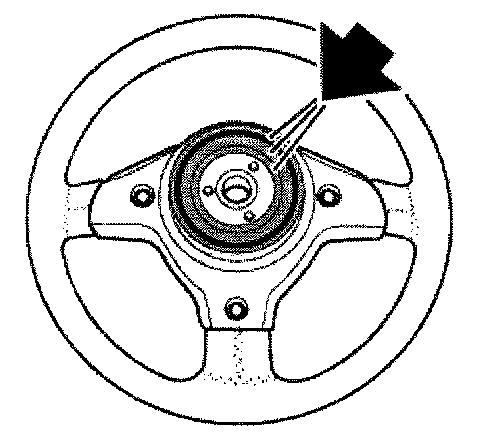

Be careful not to damage turn-indicator cancelling cams
- Set turn signals to centre position.







Installation:
Coat slip rings with grease.
