Airbag I

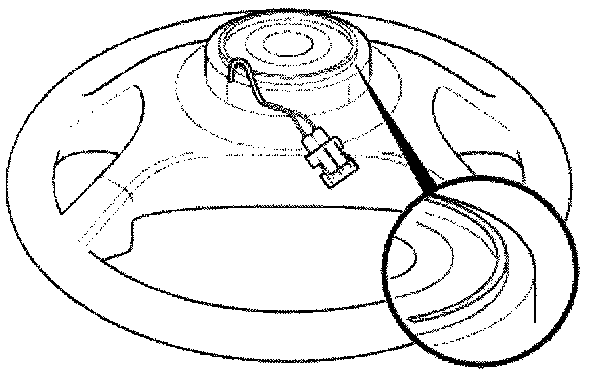

Remove airbag unit, refer to Removing and Installing or Replacing Airbag Unit. [1][2]Procedures







WARNING!
Comply with safety precautions!
Incorrect handling can activate airbag and result in injury.
Disconnect battery and cover negative pole or terminal.







Turn steering wheel to straight-ahead position (markings on steering gear and steering spindle aligned).

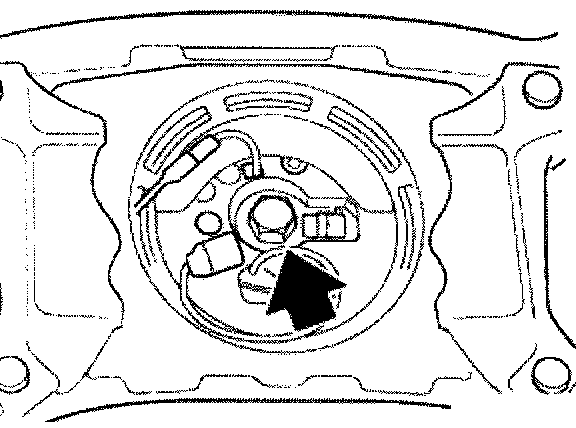

Unscrew bolt. Mark position of steering wheel relative to steering spindle. Pull off steering wheel.

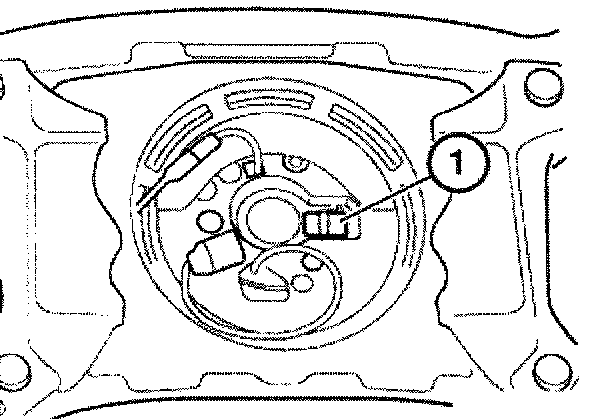

NOTE: The loosening of the screw activates the spring clip (1) which holds contact ring in centre position.







Installation:

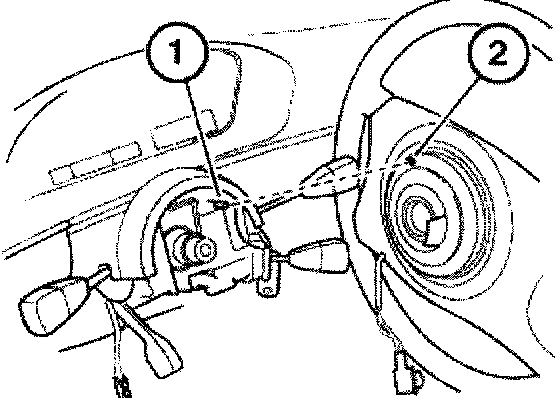

Lockpin (1) must engage in opening (2) of contact ring.
Tightening Torque =80 Nm Nut, 63 Nm Screw (Steering wheel to steering spindle.)






Adjust contact ring if necessary:

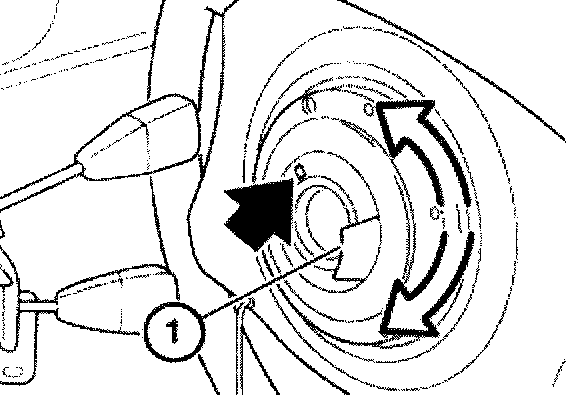

Press down spring (1). Turn contact clockwise or counterclockwise as far as stop. Turn back about 3 turns until arrows for centre position are aligned.
Release spring (1).







Installation:
Coat slip ring with grease.
