Replacing Throttle Cable

Replacing Throttle Cable




- Unscrew nut (1) and disconnect throttle cable.




- Remove valve body. Service and Repair
- Disconnect throttle cable.




- Press throttle cable out of case upwards.

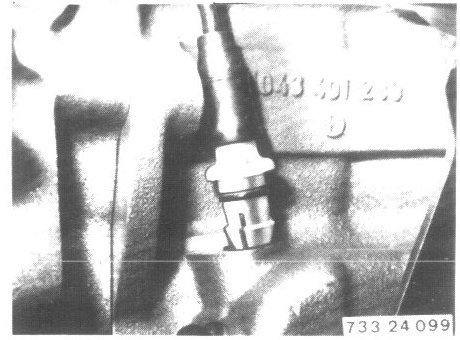

- Press new throttle cable into case until retaining tabs engage.

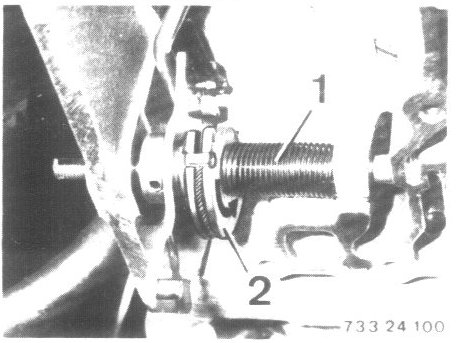

- Preload spring (1) by one turn anticlockwise with throttle cam (2).
- Connect nipple on throttle cam.




- Install valve body

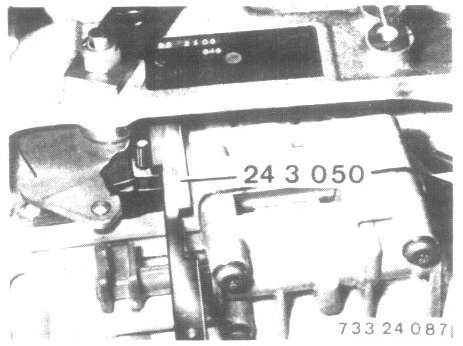

- Insert Special Tool 24 3 050 between valve body case and throttle pressure valve.
- Push throttle cam against throttle pressure valve.




- Connect throttle cable in suspension On transmission and holder (1).
- Tighten cable

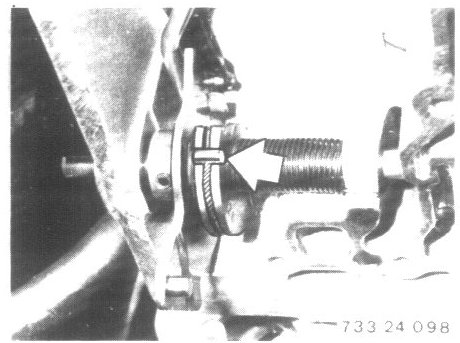

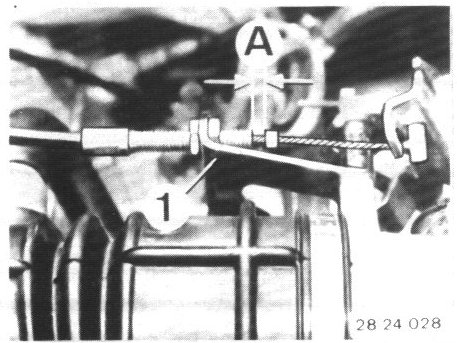

- Squeeze loose lead seal on cable at distance (A) = 0.25 to 0.50 mm (0.010 to 0.020").
- Adjust throttle cable. Adjustments
