Replacing Spring For Throttle Cable

Replacing Spring For Throttle Cable




- Remove valve body. Service and Repair

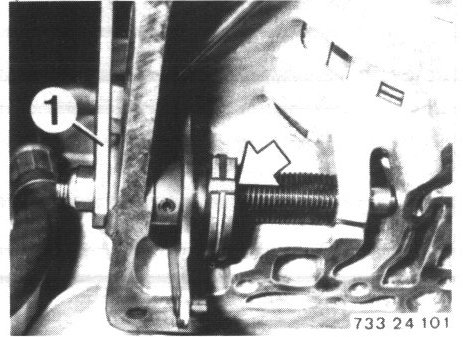

- Disconnect selector lever (1) on transmission.
- Disconnect throttle cable.

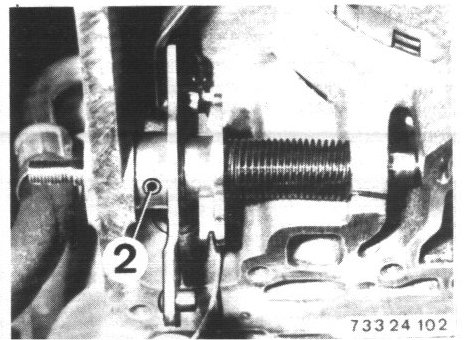

- Drive out pin (2) in position N.

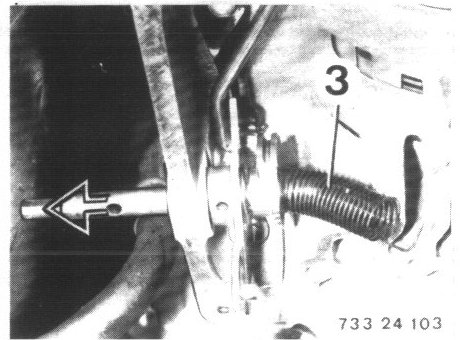

- Pull out selector shaft far enough that spring (3) can be removed.




Installation:
- Install selector shaft

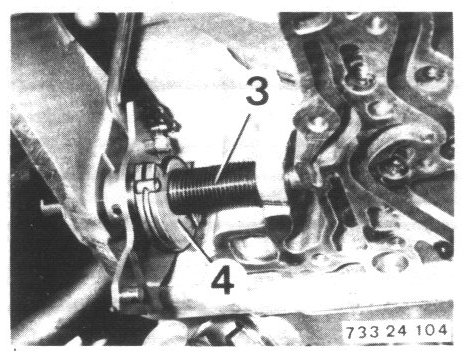

- Preload spring (3) by one turn anticlockwise with throttle cam (4).
- Connect nipple on throttle cam.
