Pressure Regulating Solenoid: Service and Repair

Replacing Pressure Regulator

(Valve Body Removed) Service and Repair




- Pull off wire plug

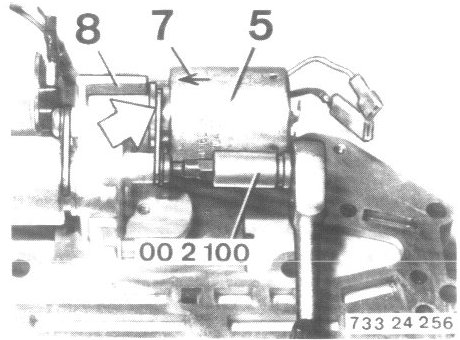

- Unscrew Torx bolt with Special Tool 00 2 100
- Take off holder.
- Pull Out pressure regulator (5).
IMPORTANT! - Installation:
- Arrow (7) on pressure regulator must be aligned with rib (8).
- Install holder with tabs facing collar on pressure regulator.
- Tightening torque: Mechanical Specifications
