Removal and Replacement

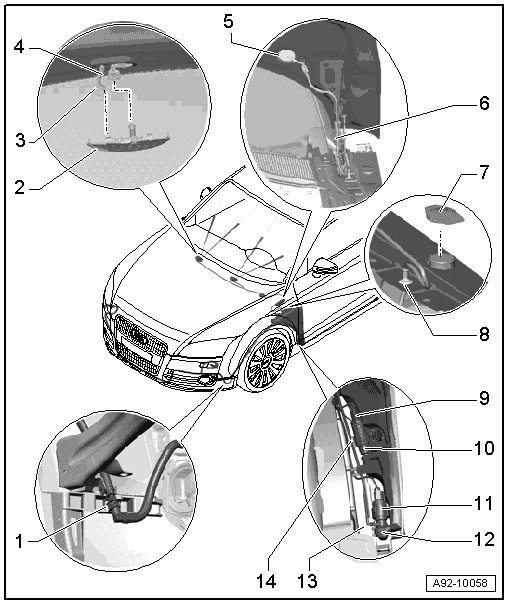

Washer Fluid Reservoir and Fluid Lines Overview

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.






1 Hose Connection

• For headlamp washer system washer fluid line.

2 Spray Nozzle

• Removing and installing, refer to => [ Windshield Spray Nozzles ] Service and Repair.

3 Electrical Connector

• For spray jet heating.

• Depending on the vehicle equipment level.

4 Washer Fluid Line

• For nozzle

5 Grommet

• For washer fluid line in hood.

6 Washer Fluid Line

• Clipped into hood bracket.

7 Cover

• For washer fluid reservoir.

8 Grommet

• For washer fluid line in fender.

9 Electrical Connector

• For headlamp washer system pump.

10 Headlamp Washer System Pump (V11)

11 Electrical Connector

• For Windshield Washer Pump (V5).

12 Windshield Washer Pump (V5).

13 Washer Fluid Line

• For windshield washer system

14 Washer Fluid Line

• For headlamp washer system.
