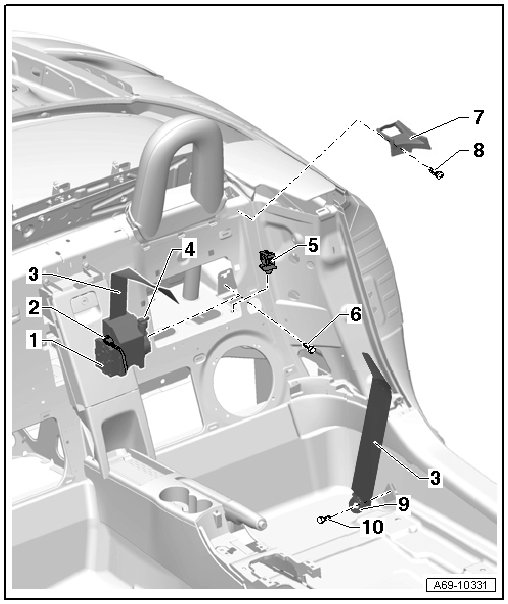

Three-Point Seat Belt Assembly Overview

Three-Point Seat Belt Assembly Overview






1 Three-point seat belt

• Without switchable belt load limiter

• Removing and Installing, refer to => [ Three-Point Seat Belt with Belt Tensioner/Force Limiter ] Three-Point Seat Belt With Belt Tensioner/Force Limiter

• With switchable force limiter (country-specific)

• Removing and Installing, refer to => [ Three-Point Seat Belt with Belt Tensioner/Force Limiter ] Three-Point Seat Belt With Belt Tensioner/Force Limiter

2 Belt tensioner connector

• Removing and installing, refer to => [ Three-Point Seat Belt with Belt Tensioner/Force Limiter ] Three-Point Seat Belt With Belt Tensioner/Force Limiter

3 Belt webbing

4 Switchable belt load limiter connector

• Versions for specific countries:

• Removing and Installing, refer to => [ Three-Point Seat Belt with Belt Tensioner/Force Limiter ] Three-Point Seat Belt With Belt Tensioner/Force Limiter

5 Coupling

• Left: for switchable belt load limiter

• Right: for the seat belt tensioner

• Clipped into body

6 Bolt

• 45 Nm

7 Belt guide

• Removing and Installing, refer to => [ Belt Guide Anchorage Point ] Belt Guide Anchorage Point

8 Bolt

• 6 Nm

• Replacing

9 Belt anchor

• Removing and Installing, refer to => [ Outer Belt End Fitting ] Outer Belt End Fitting

10 Bolt

• 55 Nm
