Belt Guide Anchorage Point

Belt Guide Anchorage Point

Removing

- Remove the belt end fitting. Refer to => [ Outer Belt End Fitting ] Outer Belt End Fitting.

- Remove rear bulkhead cover. Refer to => [ Rear Bulkhead Cover ] Rear Bulkhead Cover.

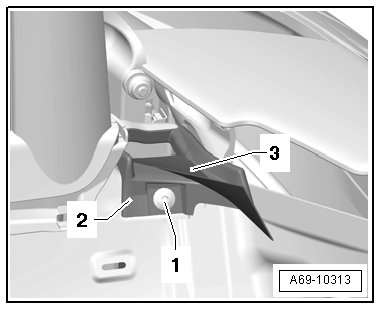

- Remove bolts - 2 - and remove belt guide - 1 -.






- Thread belt webbing - 3 - out of belt guide - 2 -.

Installation

Install in reverse order of removal.

For the correct tightening specifications; refer to => [ Three-Point Seat Belt Assembly Overview ] Three-Point Seat Belt Assembly Overview.
