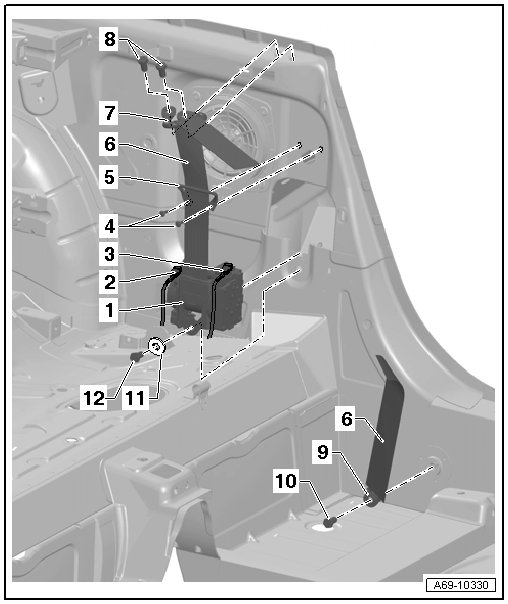

Front Three-Point Seat Belt Assembly Overview

Front Three-Point Seat Belt Assembly Overview






1 Three-point seat belt

• without switchable belt load limiter

• Removing and Installing, refer to => [ Three-Point Seat Belt with Belt Tensioner/Force Limiter ] Three-Point Seat Belt With Belt Tensioner/Force Limiter

• With switchable force limiter (country-specific)

• Removing and Installing, refer to => [ Three-Point Seat Belt with Belt Tensioner/Force Limiter ] Three-Point Seat Belt With Belt Tensioner/Force Limiter

2 Switchable belt load limiter connector

• Versions for specific countries:

• Removing and Installing, refer to => [ Vehicles with a Switchable Force Limiter (country-specific) ] Three-Point Seat Belt With Belt Tensioner/Force Limiter

3 Belt tensioner connector

• Removing and installing => [ Three-Point Seat Belt with Belt Tensioner/Force Limiter ] Three-Point Seat Belt With Belt Tensioner/Force Limiter

4 Bolt

• 4.5 Nm

• Quantity: 2

5 Retainer

6 Belt webbing

7 Belt guide ring

8 Bolt

• 45 Nm

• Quantity: 2

9 Belt anchor

• Removing and Installing, refer to => [ Front Outer Belt End Fitting ] Front Outer Belt End Fitting

10 Bolt

• 55 Nm

11 Washer

12 Bolt

• 45 Nm
