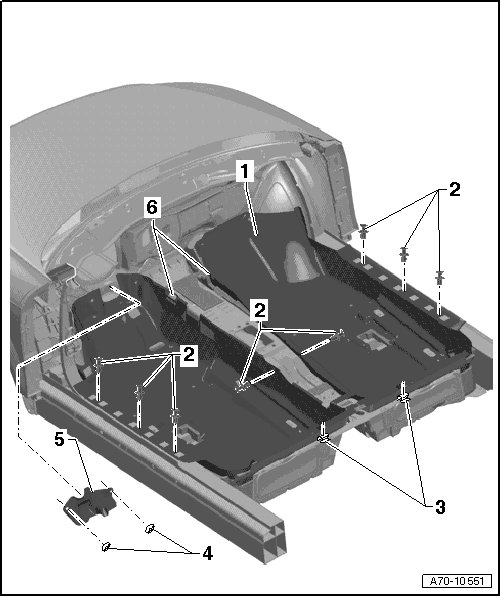

Floor Covering Assembly Overview

Floor Covering Assembly Overview






1 Carpet

• One piece

• Removing and Installing, refer to => [ Floor Covering ] Floor Covering

2 Expanding clip

• Quantity: 8

3 Omega clips

• Quantity: 2

• Welded to body

• Cannot be replaced

• For securing the bench seat and the carpet

4 Push button

• Quantity: 2

5 Cover for the steering column universal joint

6 Bracket

• For securing the carpet
