Special tools, testers and auxiliary items required

• Pry lever (80 - 200)






• Hook (3438)






Removing






- Remove front center console. Refer to => [ Front Center Console ] Front Center Console.

- If present, remove upholstery bracket. Refer to => [ Upholstery Bracket ] Upholstery Bracket.

- If present, remove Telephone Baseplate (R126).

- Remove the liner mat.

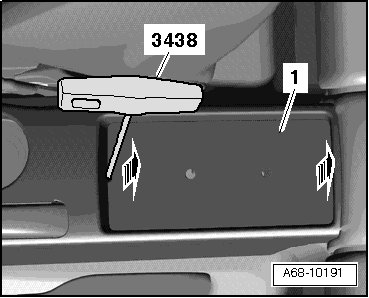

- Remove compartment - 1 - from center console - arrows - using Hook (3438).

- Disconnect the connector form the AUX socket

- Press clip - arrow - off center console using Pry Lever (80 - 200).






• For easier removal of clips, use silicon-free lubricating spray if necessary.

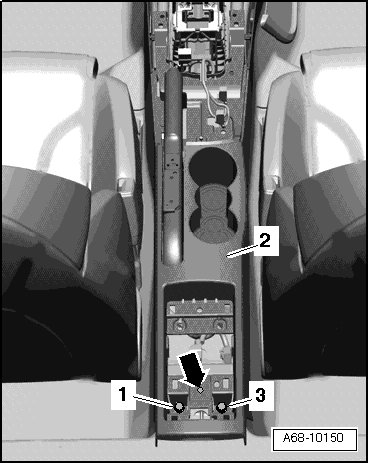

- Remove nuts - 1 - and - 3 -.

- Pull center console - 2 - up and guide it over parking brake lever.

Installation

Install in reverse order of removal.

For the correct tightening specifications; refer to => [ Part 2 - Rear ] Description and Operation.
