Center Console Bracket

Center Console Bracket

Special tools, testers and auxiliary items required

• Pry lever (80 - 200)






Removing






- Remove rear center console. Refer to => [ Front Center Console ] Front Center Console.

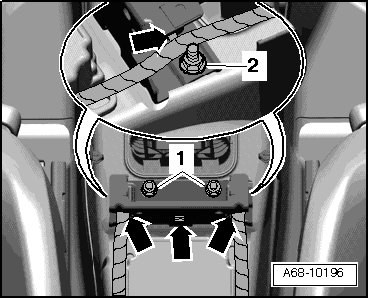

- Press clips - arrows - off bracket with Pry Lever (80 - 200).

• For easier removal of clips, use silicon-free lubricating spray if necessary.

- Remove nuts - 1 - and - 2 - and remove bracket.

Installation

Install in reverse order of removal.

For the correct tightening specifications; refer to => [ Part 2 - Rear ] Description and Operation.
