Ashtray Cover







Ashtray Cover

Removing






- Remove ashtray. Refer to => [ Ashtray ] Ashtray.

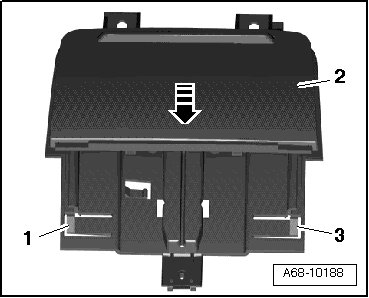

- Press left and right retaining tabs - 1 - and - 3 - down and slide ashtray cover - 2 - off ashtray - arrow -.

Installation

Install in reverse order of removal.
