Selector Lever Sensor System Control Module (J587)

Selector Lever Sensor System Control Module (J587)

Removing






- Remove the selector lever handle. Refer to => [ Selector Lever Handle, through MY 2011 without RS5 ] Selector Lever Handle, Through MY 2011 Without RS5.

- Remove the multimedia system control head (E380).

- Remove the front ashtray.

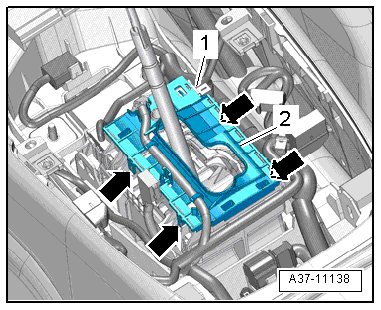

- Disconnect the connector - 1 -.






- Release the 4 tabs - arrows - and remove the selector lever sensor system control module upward.

Installing

Install in reverse order of removal. Note the following:

- Lock the selector lever sensor system control module with the 4 tabs - arrows -.

- Attach the wire to the selector lever transmission range position display unit (Y26) - arrows -.

- Install the front ashtray.

- Install the multimedia system control head.

- Install the selector lever handle. Refer to => [ Selector Lever Handle, through MY 2011 without RS5 ] Selector Lever Handle, Through MY 2011 Without RS5.
