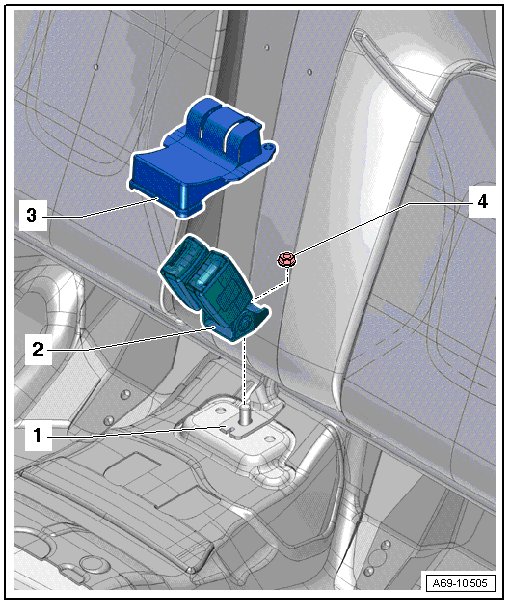

Rear Belt Latch Assembly Overview

Rear Belt Latch Assembly Overview






1 Backrest Frame

2 Rear Seat Belt Latch

• Removing and installing, refer to => [ Rear Belt Latch ] Rear Belt Latch

• Always replaced if the belt tensioner has deployed with the belt on

3 Cover

• For the belt latch

4 Nut

• If it was removed because of an accident, replace the nut

• 50 Nm
