Driver Knee Airbag Assembly Overview

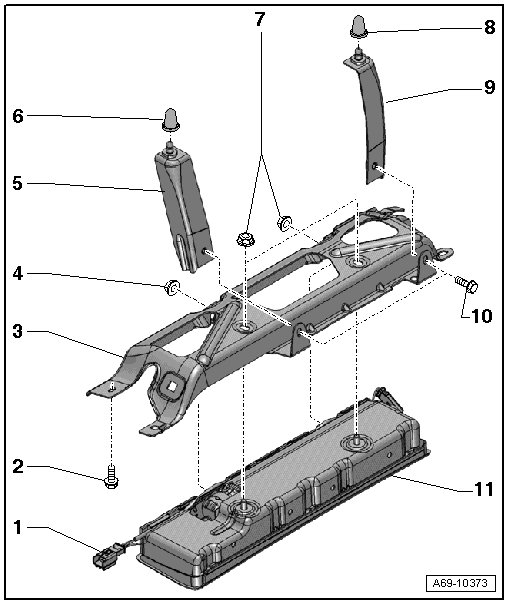

Driver Knee Airbag Assembly Overview






1 Connector

• For the driver knee airbag igniter (N295)

• Disconnecting and connecting => [ Pull the locking mechanism in the direction of the and disconnect the connectors and. ] Driver Knee Airbag Igniter

2 Bolt

• 3 Nm

• Replace

• Quantity: 2

3 Knee Airbag Mount

• Disconnect from the driver side knee airbag => [ Driver Knee Airbag, Disconnecting from Mount ] Driver Knee Airbag, Disconnecting From Mount

4 Nut

• 9 Nm

• Replace

• Quantity: 2

5 Supports

• Insert in the mount on the central tube together with the grommet - 6 -

6 Grommet

7 Nut

• 9 Nm

• Replace

• Quantity: 2

8 Grommet

9 Supports

• Insert in the mount on the central tube together with the grommet - 8 -

10 Bolt

• 4.5 Nm

• Replace

• Quantity: 2

11 Driver Side Knee Airbag

• With the driver knee airbag igniter (N295)

Follow all safety precautions when working on pyrotechnic components. Refer to=> [ Restraint System Components ] Description and Operation.

• Removing and installing, refer to => [ Driver Knee Airbag Igniter ] Driver Knee Airbag Igniter

• Disconnect from the mount. Refer to => [ Driver Knee Airbag, Disconnecting from Mount ] Driver Knee Airbag, Disconnecting From Mount
