Evaporator Vent Temperature Sensor (G263)

Evaporator Vent Temperature Sensor (G263)

Removing

- Move the passenger seats as far back as possible.

- Turn off the ignition.

- Remove the glove compartment.

- Remove the right (passenger) footwell vent. Refer to => [ Right Footwell Vent ] Right Footwell Vent.

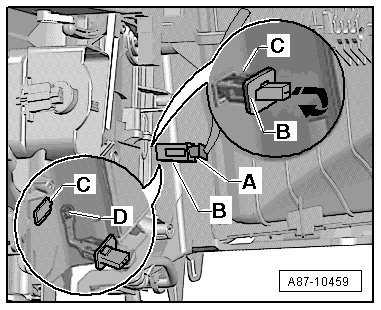

- Disconnect connector - A -.






- Loosen the evaporator vent temperature sensor - B - from the A/C bracket - C -.

- Turn the evaporator vent temperature sensor - B - 180° and remove it from the A/C unit.

• The evaporator vent temperature sensor - B - is installed so that the temperature sensor - D - is facing the evaporator. To remove and install it when the air intake housing is installed, it must be turned it its mount 180° out of installation position after loosening or before tightening.

Installing

Installation is carried out in the reverse order while observing the following.

- Loosen the evaporator vent temperature sensor - B - from the mount - C -.

- Turn the evaporator vent temperature sensor - B - 180° and the mount it in the bracket.

- Install the removed parts in the opposite order.

- Switch on the ignition.

- Check the Climatronic control module (J255) DTC memory and erase any displayed malfunctions if necessary. Refer to the Vehicle diagnostic tester in "Guided Fault Finding".
