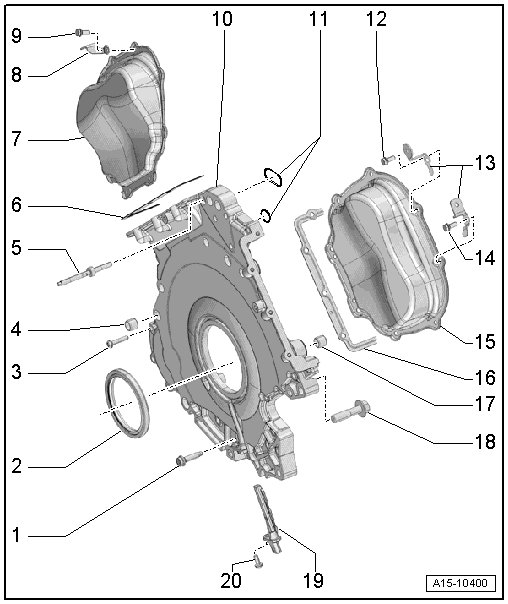

Timing Chain Covers Overview

Timing Chain Covers Overview






1 Bolt

• Replace

2 Crankshaft Shaft Seal, Transmission Side

• Removing and installing, refer to => [ Crankshaft Seal, Transmission Side ] Service and Repair

3 Bolt

• Replace

4 Alignment Bushing

• Quantity: 2

5 Threaded Pin

6 Left Cylinder Head Gasket

7 Left Timing Chain Cover

• Removing and installing, refer to => [ Left and Right Timing Chain Covers ] Left and Right Timing Chain Covers

8 Bracket

• For wiring harness

9 Bolt

• Replace

10 Lower Timing Chain Cover

• Removing and installing, refer to => [ Lower Timing Chain Cover ] Lower Timing Chain Cover

11 Seals

• Replace

12 Bolt

13 Bracket

• For the electrical connectors

14 Bolt

• Replace

15 Right Timing Chain Cover

• Removing and installing, refer to => [ Left and Right Timing Chain Covers ] Left and Right Timing Chain Covers

16 Right Cylinder Head Gasket

17 Alignment Bushing

• Quantity: 2

18 Bolt

19 Engine Speed (RPM) Sensor (G28)

20 Bolt

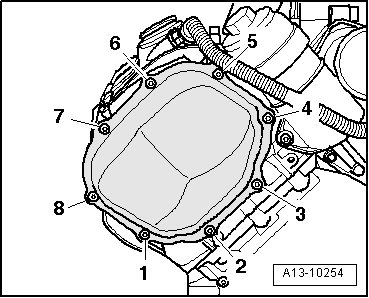

Left Timing Chain Cover, Tightening Specifications and Sequence





• Replace any bolts that were tightened with an additional turn.

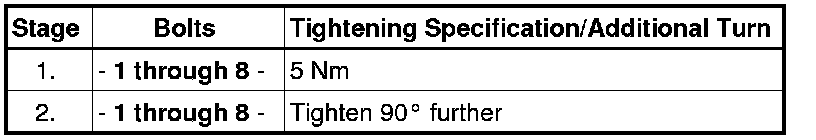

- Tighten the bolts in 2 steps and in the sequence shown:

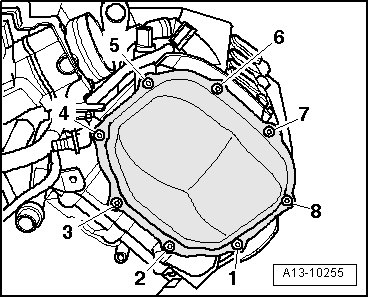

Right Timing Chain Cover, Tightening Specifications and Sequence





• Replace any bolts that were tightened with an additional turn.

- Tighten the bolts in 2 steps and in the sequence shown:






Lower Timing Chain Cover, Tightening Specifications and Sequence





• Replace any bolts that were tightened with an additional turn.

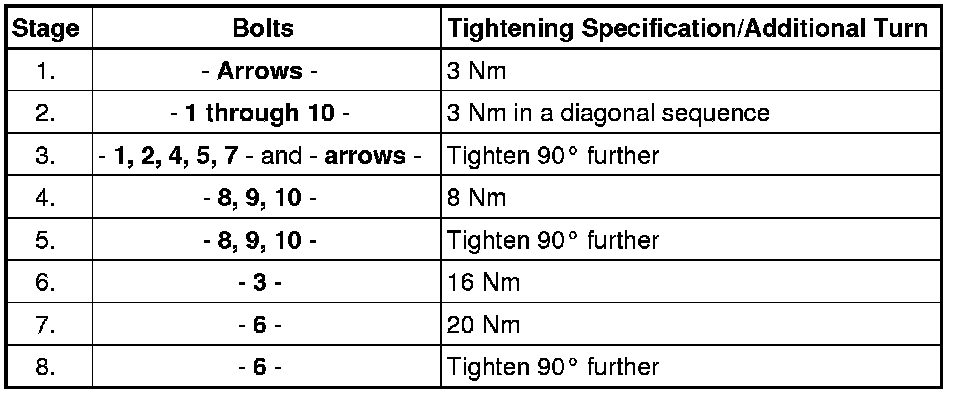

- Tighten bolts in 8 stages as follows:
