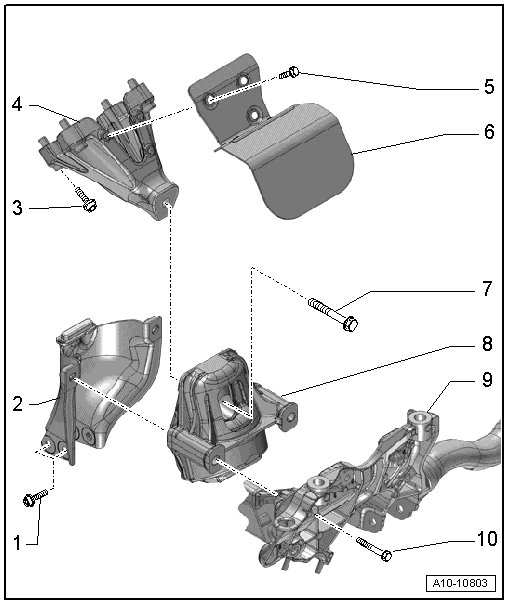

Subframe Mount Overview

Subframe Mount Overview






1 Bolt

• 20 Nm

2 Mounting Plate

• For the engine mount

• If the engine mount is faulty, replace the retaining plate

• Check the retaining plate on the opposite side; replace if necessary

3 Bolt

• 40 Nm

4 Engine Support

5 Bolt

• 10 Nm

6 Heat Shield

7 Bolt

• 90 Nm plus an additional 90° turn

• Replace

8 Engine Mount

• Removing and installing: Left => [ Left Engine Mount ] Left Engine Mount, right => [ Right Engine Mount ] Right Engine Mount

• Replace in pairs

9 Subframe

10 Bolt

• 55 Nm

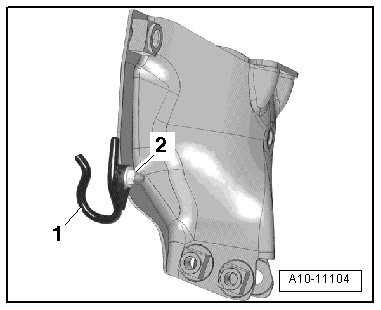

Power Steering Fluid Hose Bracket for Vehicles with Hydraulic Power Steering - Tightening Specification





- Tighten the nut - 2 - for the hydraulic oil hose bracket - 1 - to 9 Nm.
