Diagram 82/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Lane change assistance control module 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

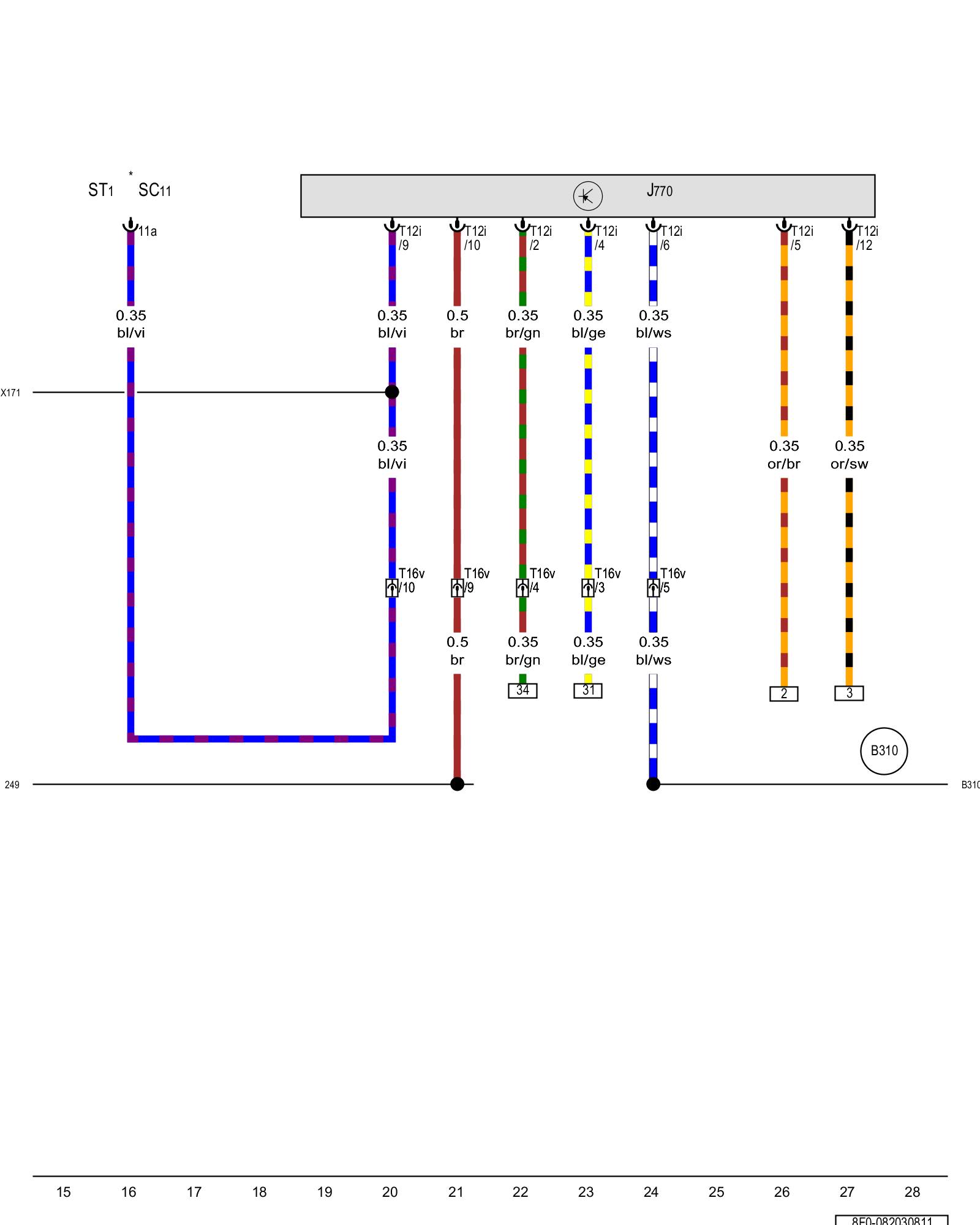

J770 - Lane change assistance control module 2 Control Modules in rear part of vehicle, overview Lane Assist System

ST1 - Fuse panel 1

SC11 - Fuse 11 (on fuse panel C) Overview Of Fuses

T12i - 12-pin connector

T16v - 16-pin connector, brown

(249) - Ground connection 2 (in interior wiring harness)

(B310) - Positive connection 14 (30) (in main wiring harness)

(X171) - Connection (15) (in rear bumper wiring harness)

* - Refer to applicable wiring diagram for fuse positions

Previous Diagram 82/2 (Tracks 1-14)

Next Diagram 82/4 (Tracks 29-42)
