Torsion Bar
Torsion Bar
Special tools, testers and auxiliary items required
• Bracket (2024 A /1)
• Counterhold (3145)
• M10x30 bolt and nut
Removing
• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components ] Description and Operation.
• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.
Adjust the front seat so that it is in the highest position. This reduces the spring force when removing and installing the torsion bar and the risk of damaging the threaded connections between upper/lower frames of the seat pan.
- Remove the front seat:
• Standard seat and Sport seat (manual), refer to => [ Manual Standard Front Seat ] Manual Standard Front Seat.
• Standard and sport power seat, comfort seat and super sport seat, refer to => [ Power Standard Front Seat ] Power Standard Front Seat.
- Attach the front seat to the (VAS 6136). Refer to => [ Installing the Front Seat on VAS 6136 ] Installing the Front Seat On VAS 6136.
- Remove tunnel side trim panel:
• Standard seat and Sport seat (manual), refer to => [ Sill Side Trim ] Sill Side Trim.
• Standard and sport power seat, comfort seat and super sport seat, refer to => [ Sill Side Trim ] Sill Side Trim.
- Remove tunnel side trim panel. Refer to => [ Tunnel Side Trim ] Tunnel Side Trim.
- Remove the front backrest:
• Standard seat and Sport seat (manual), refer to => [ Front Backrest ] Front Backrest.
• Standard and sport power seat, comfort seat and super sport seat, refer to => [ Backrest ] Backrest.
The torsion bar exerts considerable spring force. Be absolutely sure to comply with the bullet points below to avoid injury:
• Always remove and install the torsion bar in the sequence described and only using the tools specified.
• Never use pliers and other levers.
• Do not stand directly in front of the torsion bar when removing and installing it. Stand off to the side.

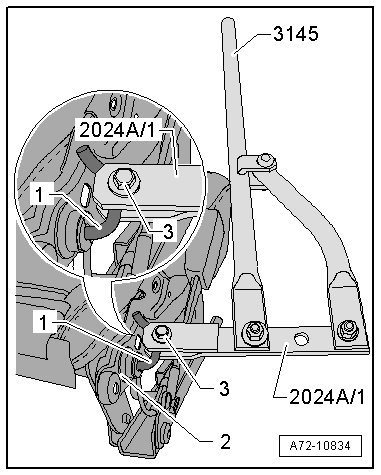

- Prevent the bracket from spreading (2024 A /1) using the M10 x 30 bolt - 3 - and nut.
- Mount the (3145) and (2024 A /1) to the torsion bar - 1 -.
2 Seat pan

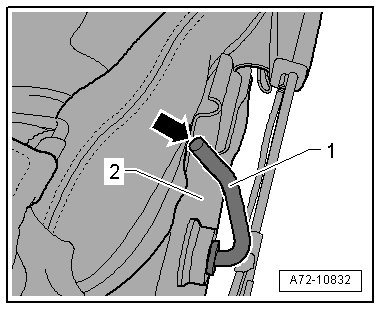

- Carefully rotate the torsion bar - 1 - with a screwdriver until it disengages from the oblong hole - arrow - on the seat pan.
- Release the tension on the torsion bar and remove the seat pan - 2 -.
Installing
The torsion bar exerts considerable spring force. Be absolutely sure to comply with the bullet points below to avoid injury:
• Always remove and install the torsion bar in the sequence described and only using the tools specified.
• Never use pliers and other levers.
• Do not stand directly in front of the torsion bar when removing and installing it. Stand off to the side.

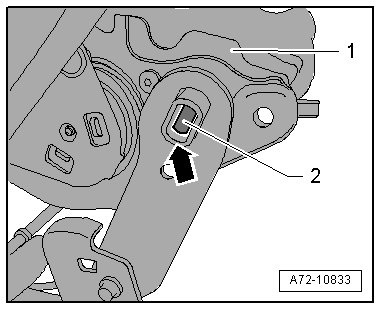

- Slide the torsion bar - 1 - into the mount until the end - arrow - comes into contact with the seat pan - 2 -.

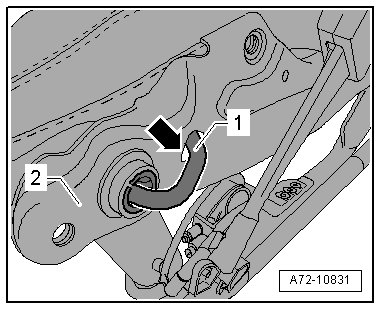

- Make sure the torsion bar - 2 - is seated in the mounting bracket - arrow - on the seat pan - 1 - correctly.
- Prevent the bracket from spreading (2024 A /1) using the M10 x 30 bolt - 3 - and nut.
- Mount the (3145) and (2024 A /1) to the torsion bar - 1 -.
2 Seat pan
- Carefully rotate the torsion bar - 1 - until it engages in the oblong hole - arrow - on the seat pan.
Further installation is performed in reverse sequence of removal, but observe the following:
• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components ] Description and Operation.
• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.
• Make sure the connectors are installed all the way in and are secure.
Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.
- Connect the battery Ground (GND) cable with the ignition turned on.
• If the airbag indicator lamp (K75) indicates a fault after installation, the Diagnostic Trouble Code (DTC) memory must be checked, deleted and checked again. Refer to Vehicle diagnostic tester.
