Seat Angle Adjustment Handle

Seat Angle Adjustment Handle

• Removal and installation can be performed with the front seat installed.

Removing






- Remove tunnel side trim panel. Refer to => [ Sill Side Trim ] Sill Side Trim.

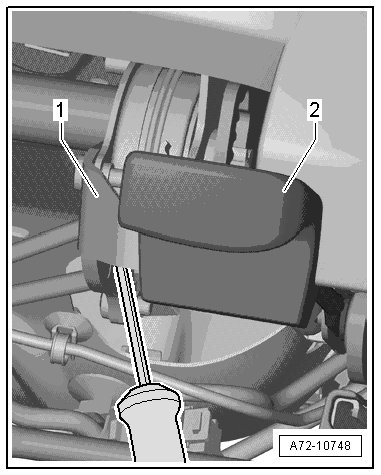

- Pry the handle - 2 - off the seat angle adjustment - 1 - by using a screwdriver to press down the clip locking spring.

Installing






Installation is reverse of removal, but note the following:

- Replace the clip on the seat height adjustment handle. Note the installation position.

- Make sure the seat height adjustment handle engages correctly with the clips.

• The springs - arrows - (quantity: 2) on the clip - 2 - must be on the inner side of the lever - 1 -.
