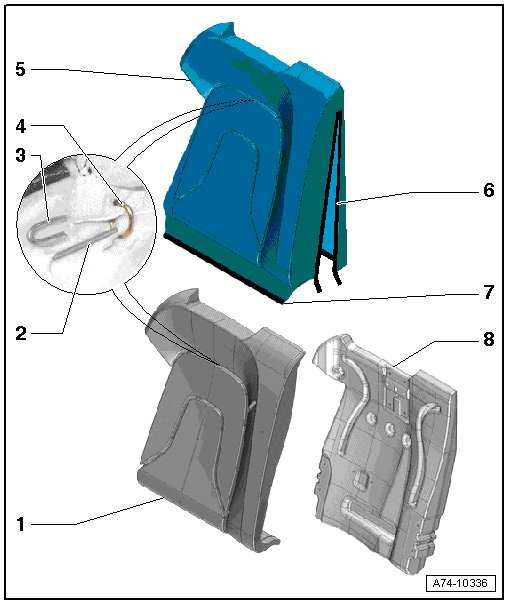

Cover and Cushion, Rear Seat Backrest Assembly Overview

Cover and Cushion, Rear Seat Backrest Assembly Overview






1 Cushion

• Cover with upholstery, removing and installing, refer to => [ Rear Seat Backrest Cover and Cushion ] Rear Seat Backrest Cover and Cushion

• Cover, separating from cushion and connecting, refer to => [ Rear Seat Backrest Cover, Removing from Cushion ] Rear Seat Backrest Cover, Removing From Cushion

2 Wire

• In foam in upholstery

• For securing cover to upholstery

3 Contour Wire

• Pushed into the cover

4 Cushion Clamp

• For securing cover to upholstery

• Always replace if removed

• Install in same location as before removal

5 Cover

• Cover with upholstery, removing and installing, refer to => [ Rear Seat Backrest Cover and Cushion ] Rear Seat Backrest Cover and Cushion

• Cover, separating from cushion and connecting, refer to => [ Rear Seat Backrest Cover, Removing from Cushion ] Rear Seat Backrest Cover, Removing From Cushion

6 Zip Fastener

• Sewn into cover

7 Retaining Channel

• Sewn into cover

8 Backrest Shell

• Removing and installing, refer to => [ Backrest Panel ] Backrest Panel
