Headrest Cover and Padding Assembly Overview

Headrest Cover and Padding Assembly Overview

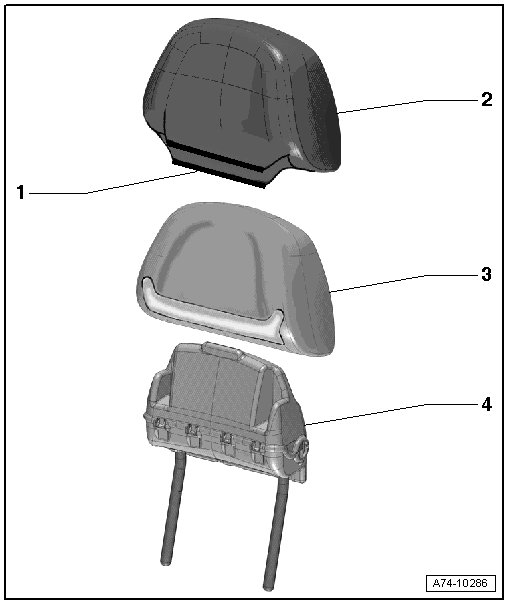

• A leather headrest is shown in the illustration. Because the headrest with fabric cover is not disassembled, that version is not shown in the assembly overview.






1 Locking Strip

• Flat strip and U-strip

2 Cover

• Equipment level: leather cover

• Removing and installing, refer to => [ Headrest Cover and Upholstery with Locking Mechanism ] Headrest Cover and Upholstery With Locking Mechanism

It is only possible to replace the cover on the headrest with a leather cover. It is not possible to replace a fabric headrest cover because the cover is filled with foam and also serves as the casing for the upholstery.

3 Cushion

• Equipment level: leather cover

• Removing and installing, refer to => [ Headrest Cover and Upholstery with Locking Mechanism ] Headrest Cover and Upholstery With Locking Mechanism

4 Headrest Support

Optional equipment:

• Manual headrests

• Power headrests
