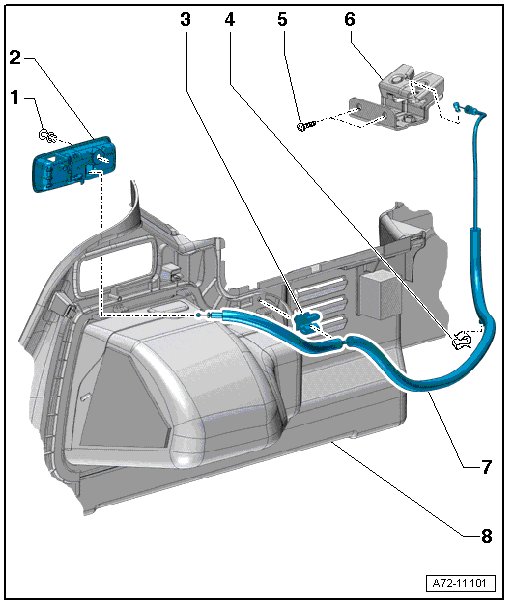

Backrest Lock Assembly Overview

Backrest Lock Assembly Overview






1 Expanding Rivet

2 Release Lever

• For the rear seat backrest

• Removing and installing, refer to => [ Rear Seat Backrest Release Lever ] Rear Seat Backrest Release Lever

3 Bracket

• For the release

4 Clips

• For the release

5 Bolt

• Quantity: 4

• 20 Nm

6 Lock

• For the rear seat backrest

• Removing and installing, refer to => [ Rear Seat Backrest Lock ] Rear Seat Backrest Lock

7 Release Cable

• For the rear seat backrest lock

• Removing and installing, refer to => [ Release ] Release

8 Luggage Compartment Side Trim

• Removing and installing, refer to => [ Luggage Compartment Side Trim ] Luggage Compartment Side Trim
