Striker

Striker

Removing






- Open the convertible top until the displayed position of the top and the convertible top compartment cover is reached.

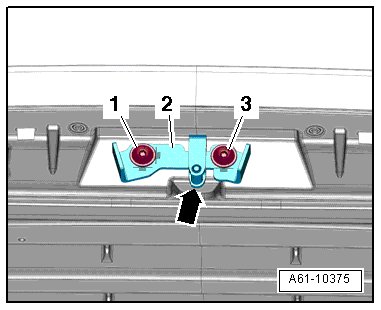

- Remove the screws - 1 - and - 3 - end plate - 2 -.






Installation

• For the correct tightening specifications, refer to => [ Adjusting Buffer, Locking Motor and End Plate Overview ] Adjusting Buffer, Locking Motor and End Plate Overview.

Install in reverse order of removal. Note the following:

- Install the end plate.

• The round side - arrow - on the end plate faces upward.

- Adjust the striker. Refer to => [ Adjusting ] Adjusting.
