Left Mounting Pin, Variable Convertible Top Compartment Enclosure

Left Mounting Pin, Variable Convertible Top Compartment Enclosure

Removing






- Remove the luggage compartment side trim. Refer to => [ Luggage Compartment Side Trim ] Luggage Compartment Side Trim.

- Slide the trim - 1 - to the right and off the left mounting pin - 3 - - arrow A -.

- Disengage the trim downward and off the mounting pin - arrow B -.

- Pull the trim off the right mounting pin - 2 - - arrow C - and remove the variable convertible top compartment enclosure.

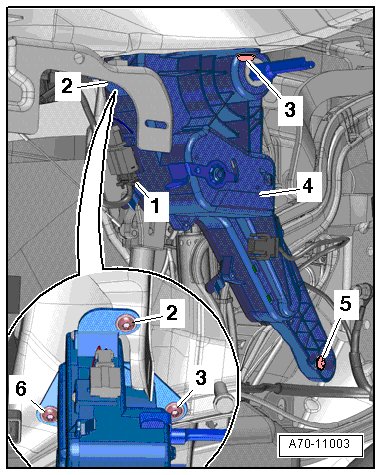

- Disconnect electrical harness connector - 1 -.






- Remove the screws - 2, 3, 5 and 6 - and remove the bracket - 4 -.

Installing

Further installation is performed in reverse sequence of removal, but observe the following:

• Make sure the connectors are installed all the way in and are secure.

- Make sure the centering pins on the bracket fit into the holes in the body.

For the correct tightening specifications, refer to => [ Variable Convertible Top Compartment Enclosure Assembly Overview ] Variable Convertible Top Compartment Enclosure Assembly Overview.
