Center Adjusting Buffer

Center Adjusting Buffer

Removing






- Open the convertible top until the displayed position of the top and the convertible top compartment cover is reached.

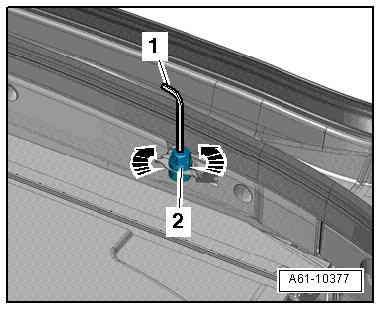

- Remove the adjusting buffer - 2 - using a hex socket wrench - 1 -.






• Ignore the - arrows -.

Installation

Install in reverse order of removal. Note the following:

- Adjust stop, refer to => [ Adjusting ] Adjusting.
