Variable Convertible Top Compartment Enclosure Assembly Overview

Variable Convertible Top Compartment Enclosure Assembly Overview

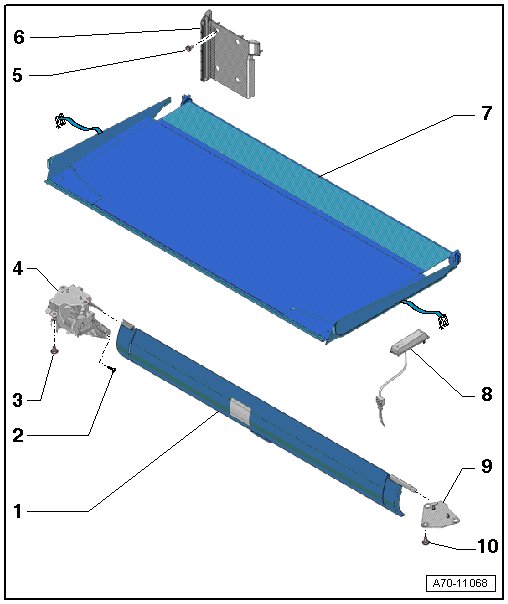

1 Trim

• For the variable convertible top compartment enclosure

• Removing and installing, refer to => [ Trim, Variable Convertible Top Compartment Enclosure ] Trim, Variable Convertible Top Compartment Enclosure

2 Bolt

• 8 Nm

3 Bolt

• Quantity: 3

• 8 Nm

4 Left Bracket

• With left convertible top compartment enclosure motor (V433)

• Removing and installing, refer to => [ Left Mounting Pin, Variable Convertible Top Compartment Enclosure ] Left Mounting Pin, Variable Convertible Top Compartment Enclosure

5 Bolt

• Quantity: 4

• 8 Nm

6 Guide Rail

• For the variable convertible top compartment enclosure

• Removing and installing, refer to => [ Guide Rail, Variable Convertible Top Compartment Enclosure ] Guide Rail, Variable Convertible Top Compartment Enclosure

7 Variable Convertible Top Compartment Enclosure

• Removing and installing, refer to => [ Variable Convertible Top Compartment Enclosure ] Variable Convertible Top Compartment Enclosure

8 Switch

• For the convertible top compartment enclosure

• Left convertible top compartment enclosure switch (F402)

• Right convertible top compartment enclosure switch (F403)

• Removing and installing, refer to => [ Left and Right Convertible Top Compartment Enclosure Switches ] Left and Right Convertible Top Compartment Enclosure Switches

9 Right Bracket

• Removing and installing, refer to => [ Right Mounting Pin, Variable Convertible Top Compartment Enclosure ] Right Mounting Pin, Variable Convertible Top Compartment Enclosure

10 Bolt

• Quantity: 3

• 8 Nm
