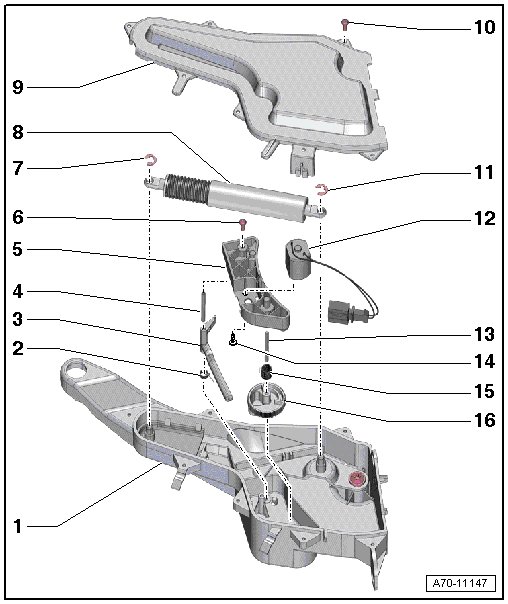

Left Bracket on Convertible Top Compartment Enclosure Assembly Overview

Left Bracket on Convertible Top Compartment Enclosure Assembly Overview






1 Bracket

• For the variable convertible top compartment enclosure

2 Spring

• For the inner release lever

• Engage in the bracket

3 Inner Release Lever

4 Shaft

• For the inner release lever

5 Bracket

• For the convertible top compartment enclosure motor

6 Bolt

• 1 Nm

7 Locking Washer

• Replace

8 Insulation Component

• Removing and installing, refer to => [ Left Convertible Top Compartment Enclosure Motor ] Left Convertible Top Compartment Enclosure Motor

9 Cover

• For the bracket

10 Bolt

• 1 Nm

11 Locking washer

• Replace

12 Left Convertible Top Compartment Enclosure Motor (V433)

• Removing and installing, refer to => [ Left Convertible Top Compartment Enclosure Motor ] Left Convertible Top Compartment Enclosure Motor

13 Shaft

• For the drive wheel

14 Bolt

• 0.5 Nm

15 Spring

• For the drive wheel

16 Drive Wheel
