Cover

Cover

Removing

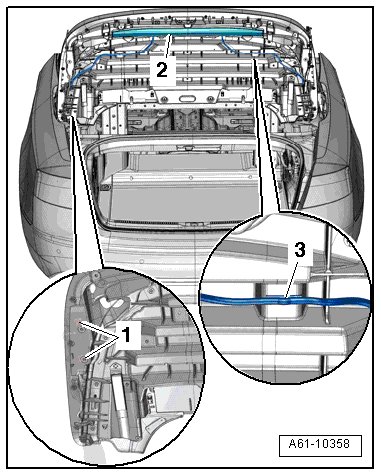

- Open the convertible top until the displayed position of the top and the convertible top compartment cover is reached.

- Disengage the service cover - 2 -.






- Disconnect the antenna wires.

- Free up the wiring harness - 3 - from the convertible top compartment cover inner section.

- Remove the screws - 1 - and remove the convertible top compartment cover.

Installation

• Tightening specifications, refer to => [ Adjusting Buffer, Locking Motor and End Plate Overview ] Adjusting Buffer, Locking Motor and End Plate Overview.

Install in reverse order of removal. Note the following:

- Connect the antenna wires.

- Adjust the convertible top compartment cover. Refer to => [ Adjusting ] Adjusting.
