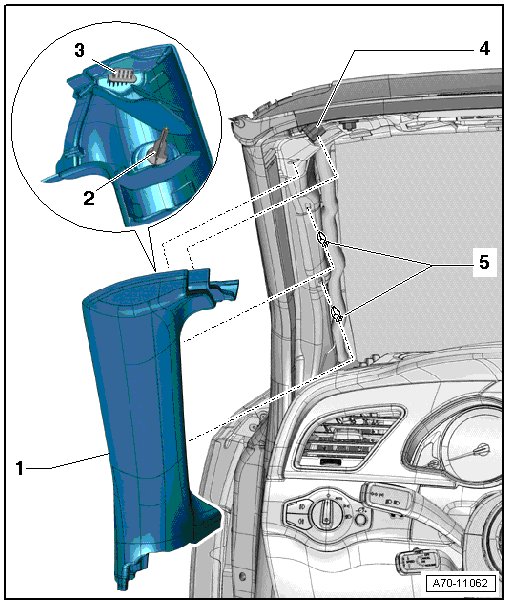

Upper A-Pillar Trim Assembly Overview

Upper A-pillar Trim Assembly Overview






1 Upper A-Pillar Trim

• Removing and installing, refer to => [ A-Pillar Upper Trim ] A-Pillar Upper Trim

2 Centering Pins

3 Retaining Tab

4 Clips

• Quantity: 2

• Install inside the roof frame

• Replace if damaged or deformed

5 Clamps

• Quantity: 2

• Install in the trim

• Replace if damaged or deformed
